Security
| Firewall security |
NAT/SPI |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Full duplex |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
| Receiver sensitivity |
11Mbps 8% PER @ -82 dBm\n54Mbps 10% PER @ -65 dBm |
Management features
| Universal Plug and Play (UPnP) |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11g |
| Maximum indoor range |
50 m |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g |
| Modulation |
CCK, DBPSK, DQPSK, OFDM |
| Maximum outdoor range |
200 m |
| Channels quantity |
13 channels |
Other features
| Mobile network connection |
N |
| xDSL connection |
N |
| Rack mounting |
N |
| Outdoor range |
30 - 50m |
| Input current |
1 A |
| Frequency band |
2.4 GHz |
| Power supply type |
7.5V DC |
| Frequency range |
2.412 - 2.484 GHz |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RP-SMA |
| Antennas quantity |
1 |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
TCP/IP, NAT, PPPoE/PPTP/L2TP, HTTP |
Additionally
| Indoors max range |
50 - 200m |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

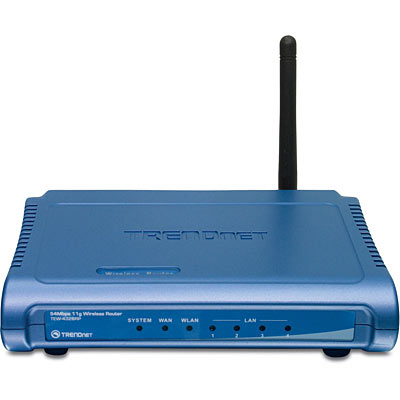

54Mbps Wireless G Broadband Router
- Proven wireless g performance and reliability
- Stream videos, download files and play games
- Create a network in minutes with Easy-Go installation
- Advanced firewall and wireless encryption ensures data security
The 54Mbps Wireless G Router offers a complete wireless solution that allows you to share files, an Internet connection, or network resource while protecting your network using enhanced security features. Simply plug your workstations and your broadband modem into the Wireless G router, and configure your broadband connection using its built-in Web Interface.
Use the VirtualServer feature to configure any workstation as a Web Server or FTP server easily, allowing users to view files from the Internet. You can also protect your Wireless LAN using64/128-bit WEP encryption or industry standard WPA-PSK with TKIP or AES algorithms. Increase security by enabling MAC, IP, or Protocol Filtering as well as setting Firewall Rules to limit Internet Access or block malicious intruders from accessing your network.
