Networking
| Supports ISDN connection |
N |
| MAC address table |
1000 entries |
| Receiver sensitivity |
802.11a: -72dBm, 54Mbps,\n802.11b: -84dBm, 11Mpbs,\n802.11g: -73dBm, 54Mbps,\n802.11n: -69dBm (HT20/HT40). |
Security
| Firewall security |
SPI, NAT |
| MAC address filtering |
Y |
Other features
| Supported data transfer rates |
802.11a: 54, 48, 36, 24, 18, 12, 9 6 Mb/s, 802.11b: 11, 5.5, 2, 1 Mb/s, 802.11g: 54, 48, 36s, 24, 18, 12, 9, 6 Mb/s, 802.11n: 300 Mb/s. |
| Maximum data transfer rate |
0.3 Gbit/s |
| xDSL connection |
N |
| Security features |
AES/TKIP, 64/128-bit WEP (HEX, 11a/b/g/n)\n802.1X/EAP: EAP-TLE, EAP-TTLE/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC,\nWPA: WPA/WPA2, WPA-PSK/WPA2-PSK (AES-11b/g/n, TKIP-11b/g),\nWPS: PIN & PBC,\nSSID. |
| Supported protocols |
CSMA/CA (ACK) |
| Number of users |
32 user(s) |
| Operating temperature (T-T) |
32 - 104 °F |
| Frequency range |
2.412 - 2.462 GHz (FCC), 2.412 - 2.472 GHz (ETSI), 5.150 - 5.250 GHz, 5.725 - 5.825 GHz (FCC), 5.150 - 5.250 MHz (ETSI) |
Management features
| Universal Plug and Play (UPnP) |
Y |
Protocols
| DMZ support |
Y |
| Supported network protocols |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
| Modulation |
OFDM, QPSK |
Additionally
| Output power |
802.11a: 14dBm, 802.11b: 18dBm, 802.11g: 15dBm, 802.11n: 11dBm (HT20/ HT40) |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

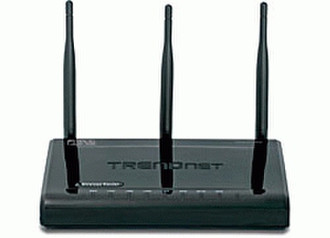

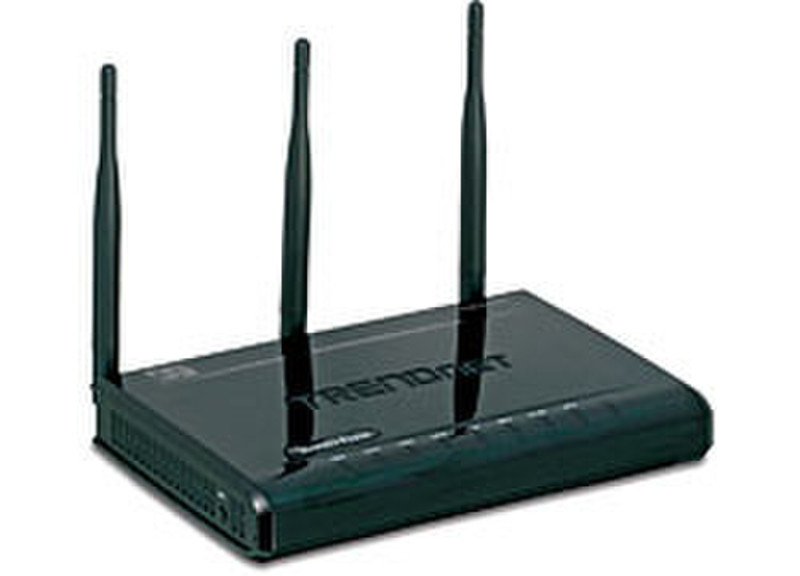

The 300Mbps Dual Band Wireless N Gigabit Router offers unsurpassed wireless speed, coverage and reliability. Enjoy up to 14x the speed and 6x the coverage of a wireless g connection*.
Dual Band wireless n technology uses 11 additional wireless channels, reduces wireless interference and optimizes performance in the most challenging environments.
Advanced Multiple Input Multiple Output (MIMO) antenna technology eliminates wireless dead spots. Advanced wireless encryption and a manual on/off wireless switch keeps your data safe. Wireless Protected Setup (WPS) integrates other WPS supported wireless adapters at the touch of a button. Seamlessly stream HD media, download files, surf and play games all at the same time.
**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.
-IEEE 802.11n draft 2.0 and IEEE 802.11a/b/g compliant.
-Dual band 2.4Ghz and 5Ghz Wireless Local Area Networking (WLAN) in one device.

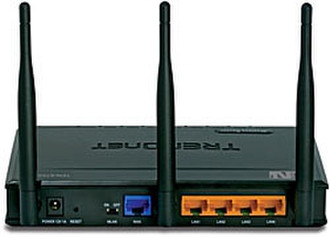

-4 x 10/100/1000Mbps Auto-MDIX LAN ports and 1 x 10/100/1000Mbps WAN port (Internet).
-Gigabit LAN ports for high speed network connectivity.
-Compatible with most popular cable/DSL Internet service providers using Dynamic/Static IP, PPPoE, PPTP and L2TP.
-High-speed data rates up to 300Mbps using an IEEE 802.11n draft 2.0 connection.
-3 external antennas provide high-speed performance and expansive wireless coverage.
-Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI).
-Access restriction with Internet Access Control; time scheduling, URL and MAC filtering.
-Built in pre-configured virtual servers and Application Level Gateway services for special Internet applications.
-Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications.
-Enable/disable wireless functionality with the WLAN on/off toggle switch.
-Multiple pass-through sessions for popular VPN applications (IPSec, L2TP and PPTP).
-Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, and Safari.
-One touch wireless security setup using the Wi-Fi Protected Setup (WPS) button.
-Complete wireless security with WPA/WPA2, WPA-PSK/WPA2-PSK, and WEP.
-Windows 95/98/NT/2000/XP/2003 Server/Vista, Linux and Mac OS supported.
-3-year limited warranty.
