Networking
| MAC address table |
24 entries |
Security
| Firewall security |
NAT, SPI |
| VPN support |
IPSec, L2TP, PPTP |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
450 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Channels quantity |
13 channels |
Other features
| xDSL connection |
N |
| Rack mounting |
N |
| Input current |
1 A |
| Operating temperature (T-T) |
32 - 104 °F |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
4 dBi |
| Antennas quantity |
3 |
Protocols
| DHCP client |
N |
| DHCP server |
N |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

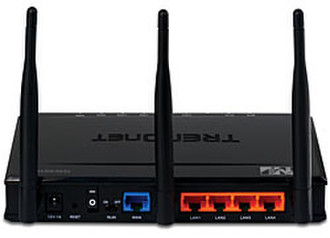

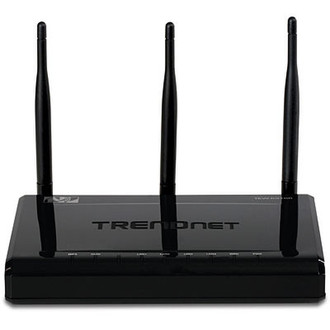

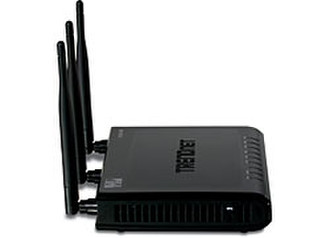

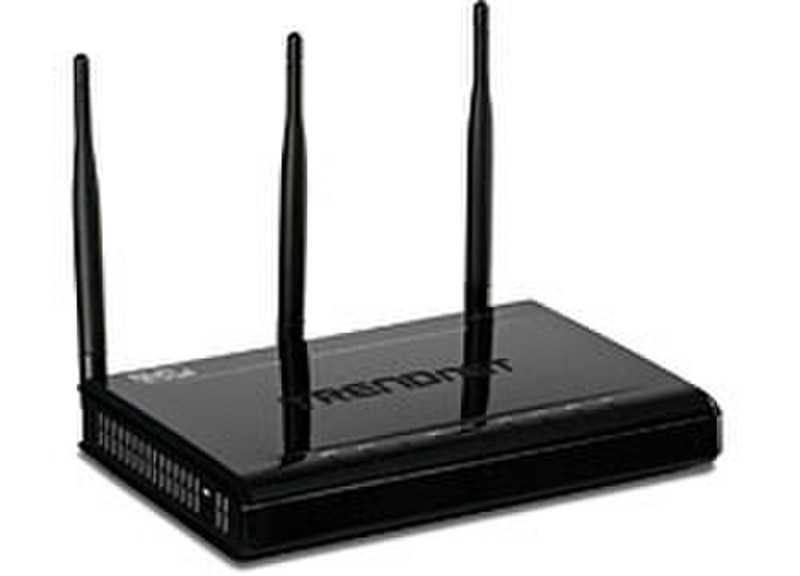

TEW-691GR - 450 Mbps, Gigabit Ethernet, 4x RJ-45, 1x WAN (RJ-45), 289g, Black
TRENDnet’s 450Mbps Wireless N Gigabit Router, model TEW-691GR, redefines wireless router performance. This router’s raw horsepower seamlessly streams HD movies to your entertainment center, transfers content from countless users, and generates record wireless coverage.
Gigabit Wide Area Network and Local Area Network ports transfer wired data fast. Embedded GREENnet technology reduces power consumption.
Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna generates a maximum theoretical wireless throughput of 450Mbps. Wi-Fi Protected Setup (WPS) integrates other WPS supported wireless adapters at the touch of a button. The latest in wireless encryption and a secure firewall protect your digital network. WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video streams. LEDs on the front of the router convey device status.
