Other features
| Connectivity LEDs |
Y |
| Networking features |
Fast Ethernet |
| Wireless technology |
Wi-Fi |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u |
| Maximum operating distance |
10000 m |
| Operating temperature (T-T) |
-4 - 158 °F |
| Power LED |
Y |
Performance
| Receiver sensitivity |
802.11b: -88 dBm (typical) @ 11 Mbps\n802.11g: -73 dBm (typical) @ 54 Mbps\n802.11n: -67 dBm (typical) @ 150 Mbps |
| Modulation |
CCK, DQPSK, OFDM, BPSK, DBPSK, QPSK |
| Frequency band |
2.412 - 2.472 GHz |
| VLAN support |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Channels quantity |
13 |
Antenna
| Antenna connector type |
N |
| Antenna gain level (max) |
8 dBi |
| Antennas quantity |
1 |
Power
| Power over Ethernet (PoE) |
Y |
| Power supply |
12 W |
| Power supply type |
DC |
Protocols
| Management protocols |
HTTP/HTTPS, SNMP, Telnet, SSH |
Additionally
| Output power |
802.11b: 26 dBm (typical), 802.11g: 24 dBm (typical), 802.11n: 21 dBm (typical) |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
135 Mbit/s |

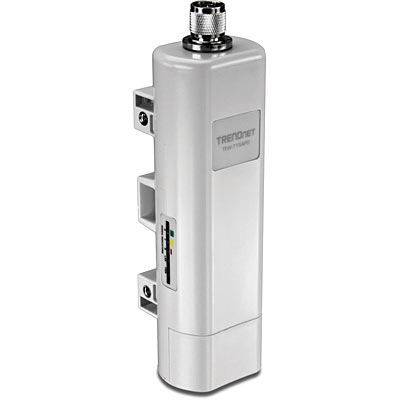

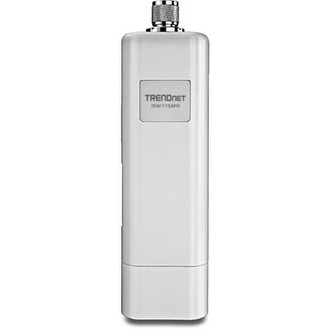

N150 Wireless Outdoor PoE Access Point, Fast Ethernet, WLAN 802.11b/g/n, 8dBi, N-Type, PoE, HTTP/HTTPS, SNMP, Telnet, SSH, IP55, 10km, 12W, 500g
TRENDnet’s N150 Wireless Outdoor PoE Access Point, model TEW-715APO, provides high speed building-to-building networking with its built in dual polarization directional 8dBi antenna for distances up to 6 miles (10 km)*. Install an omni-directional antenna (with a N-Type connector), such as TRENDnet’s TEW-AO08O to provide blanket outdoor wireless coverage over a large area. A range of applications are facilitated with Access Point, Wireless Client, WDS, Bridge, CPE, and Repeater mode support.

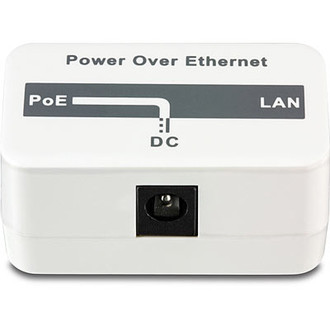

A durable IP-55 rated outdoor enclosure protects the device from inclement weather. Power for this unit is supplied by an included PoE injector, resulting in equipment and installation cost savings. Additional features include SNMP (v2c, v3), Spanning Tree, real time network activity tables, WPA/WPA2 encryption, MAC address filters, 16 virtual AP profiles, 802.1Q, 802.1X, mounting hardware, and GPS coordinate support.
