Security
| Firewall security |
NAT, ALG |
| VPN support |
PPTP/L2TP/IPsec |
| DoS attack prevention |
Y |
| Firewall |
Y |
| URL filtering |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
Networking
| Routing protocols |
RIP-1, RIP-2 |
| Management protocols |
FTP, HTTP, ICMP, SNMP, SSH, Telnet, TFTP |
Other features
| WLAN data transfer rates supported |
11, 54, 150, 300, 433 Mbit/s |
| xDSL connection |
Y |
| Bandwidth (second) |
5 GHz |
| Bandwidth (first) |
2.4 GHz |
| Rack mounting |
N |
| Input current |
0.5 A |
| Frequency band |
2.4 & 5 GHz |
| USB version |
2.0 |
| USB ports quantity |
2 |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11ac |
| WLAN data transfer rate (max) |
433 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 256-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
Antenna
| Antenna type |
Internal |
| Antenna gain level (max) |
3 dBi |
Power
| Power over Ethernet (PoE) |
N |
| Power source type |
DC |
Management features
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Filtering |
MAC, URL, IP |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

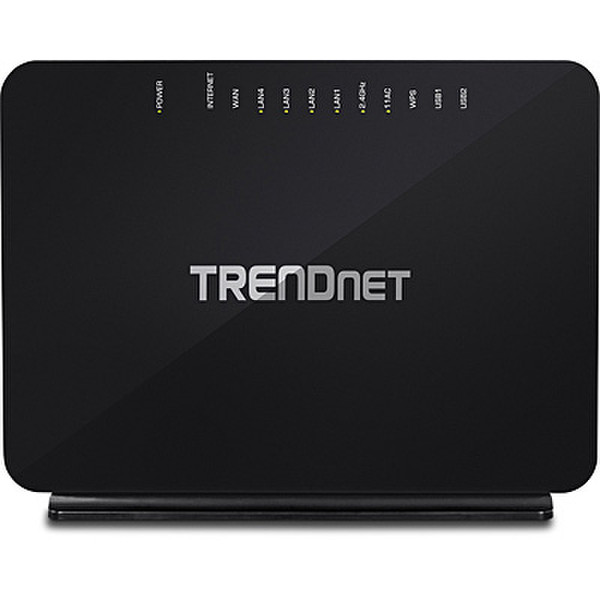

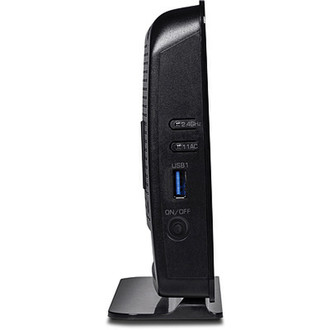

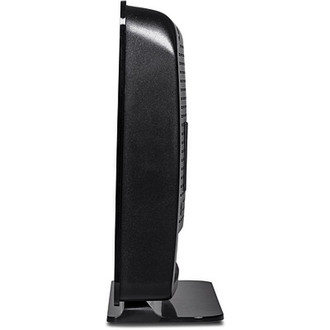

AC750 Wireless VDSL2/ADSL2+ Modem Router, Dual Band, 2 x USB, 4 x Fast Ethernet RJ-45, 1 x RJ-11 WAN, 1 x RJ-45 WAN
TRENDnet’s AC750 Wireless VDSL2/ADSL2+ Modem Router, model TEW-816DRM, offers a combination high performance modem for internet access and a powerful wireless AC750 router. The built-in modem supports the latest ADSL2+ and VDSL2 standards for downstream speeds of up to 200 Mbps*. Wireless AC750 produces concurrent high speed 433 Mbps Wireless AC and 300 Mbps Wireless N networks. Use the two USB and four Ethernet ports to share content and devices across the network.
- Combination high performance modem and wireless router
- Compatible with VDSL2/ADSL2+ ISP networks
- VDSL2: downstream throughput of up to 200 Mbps
- Wireless AC750: 433 Mbps AC + 300 Mbps N bands
- Pre-encrypted wireless for your convenience

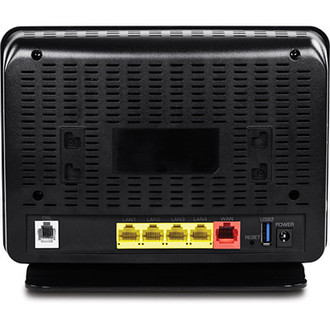

- Two USB and four Ethernet ports
