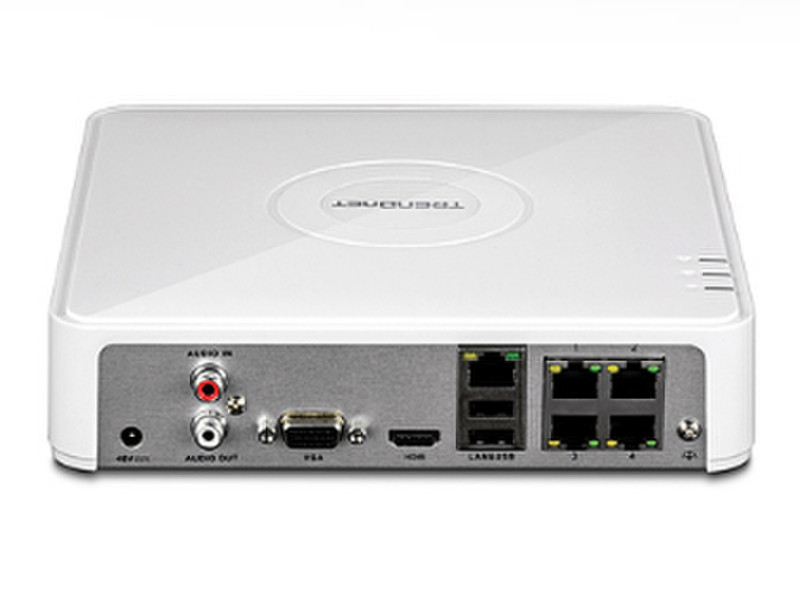

Ports & interfaces
| Audio RCA inputs |
1 |
| Audio RCA outputs |
1 |
| Power over Ethernet (PoE) |
Y |
| VGA (D-Sub) output ports |
1 |
Storage
| Hard drive size |
3.5 " |
| Hard drive capacity |
2000 GB |
| Number of hard drives installed |
1 |
| Number of hard drives supported |
1 |
| Maximum storage capacity |
6 TB |
| Hard drive interface |
Serial ATA, Serial ATA II |
Performance
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Supported network protocols |
IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, , HTTP, UPnP, RTSP, RTP, RTCP |
| Video input channels |
4 channels |
Packaging content
| CD manual |
Y |
| Quick installation guide |
Y |
Additionally
| Выход HDMI |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
4 x PoE, RJ-45, HDMI, VGA, 1920 x 1080 p/60 Hz, 2 x RCA, 3.5'' SATA I/II HDD/SSD, IEEE 802.3/802.3u/802.3x/802.3af, 10/100 Mbps, 2 TB HDD, 100 - 240 V, 50 - 60 hz, 1.5 A, 48 V DC, 50 W, 205 x 198 x 45 mm, 1.3 kg
- Standalone 4-channel PoE network video recorder
- Plug and play up to 4 TRENDnet PoE cameras*
- Concurrent 720p video recording for all channels
- Preinstalled 2 TB HDD provides two weeks of continuous 720p video recording***
- One 3.5” SATA II bay support up to a 6 TB of storage**
- Advanced video playback
- PoE power budget: 35 W
- ONVIF compliant

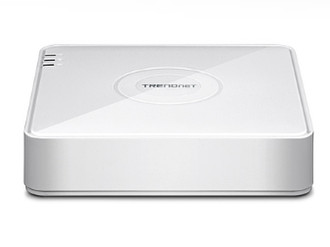

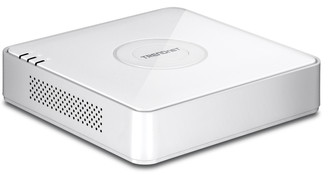

TRENDnet’s standalone 4-channel HD PoE NVR, model TV-NVR104D2, offers a comprehensive camera management solution. This NVR includes a preinstalled 2 TB hard drive providing up to one week of continuous HD video recording and connects up to four PoE cameras*. The TV-NVR104D2 features advanced video playback and free iOS®/ Android™ apps available.
Standalone HD NVR
This standalone 720p HD NVR includes a preinstalled 2 TB hard drive and supports a total storage capacity of up to 6 TB and powers up to four PoE network cameras-HDDs, cameras, and display sold separately.
Plug-and-Play Installation
The NVR auto-recognizes and powers TRENDnet PoE cameras* – simply connect compatible TRENDnet PoE cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.
