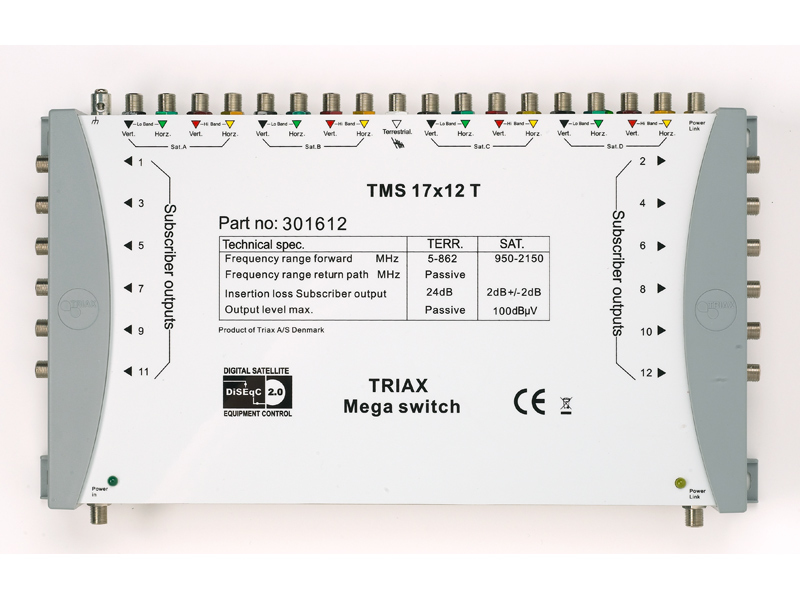

Triax TMS 17x12 T Cable splitter Grey

TMS 17x12 T Four positions (Triax TMS 17x Megaswitch series).

Triax TMS 17x series is an easy to install multiswitch system for use where 4 satellite positions are required. A terrestrial input is available to allow terrestrial as well as satellite signals to be available on all subscribers outputs.

- 16 inputs + terrestrial.
- From 6 up to 16 outputs.
- Colour ID on all inputs and trunks.
- for easy installation.

TMS 17x has an active satellite signal path and a passive terrestrial signal path allowing a terrestrial return path if needed. Satellite position switchning is done via DiSEqC signals from the subscriber set-top box.

A maximum of 100 mA is sourced for this purpose from the subscriber set-top box.
