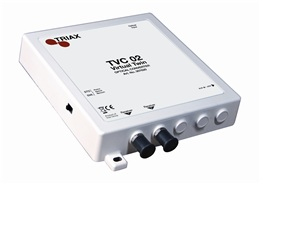

TVC 02, FC/PC, 2x & 4 x female, STD/SML
Input parameters
- RF Frequency range, vertical polarities: 0.95 – 3.0 GHz
- RF Frequency range, horizontal polarities: 3.4 – 5.45 GHz
Optical
- Optical RLR (min.): 20 dB
- Optical power, small PON setting (min.): -13 dBm
- Optical power, small PON setting (max.): 0 dBm
- Optical power, large PON setting (min.): -18 dBm
- Optical power, large PON setting (max.): -14 dBm
- Aggregate equivalent RF power (min.): -60 dBm
- Aggregate equivalent RF power (max.): -20 dBm
- Nominal satellite transponder levels (min.): -80 dBm
- Nominal satellite transponder levels (max.): -40 dBm
- Satellite transponders: 120 dBm
- Input connector: FC/PC
RF frequency range (output parameters)
- Horisontal high band (converted from 4.4 to 5.45 GHz): 1100-2150 MHz
- Vertical high band (converted from 1.95 to 3.0 GHz): 1100-2150 MHz
- Horisontal low band (converted from 3.4 to 4.4 GHz): 950-1950 MHz
- Vertical low band (converted from 0.95 to 1.95 GHz): 950-1950 MHz
- Nominal impedance: 75 Ohm
- Return loss (min.): 10 dB
- Gain ripple across band (max.): 4 dB
- Gain ripple across 30MHz (max.): 1 dB
- Nominal output level (per. transponder): -65 (min.), -25 (max.) dBm
- OIP3 (min.): +10 dBm
- Isolation (unwanted path to selected path): 30 dB
- In band spurious power (min.): -25 dBc
- Out of band spurious power (max.): -60 dBm
- LO power (max.): -60 dBm
- Integrated phase noise (integrated from 1kHz to 13MHz): 4
- Output frequency stability/accuracy (max.): 320 kHz
- Output connectors: 2x and 4 x female
Others
- Power consumption (at 12 VDC): <300 mA
- Power supply: From STB
Level switch
- Passive optic network size switch (levels of splitting): STD/SML
- Passive optic network size switch (SML position): > -14 dBm
- Passive optic network size switch (STD position): < -14 dBm
