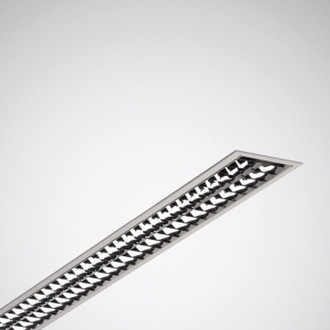

Trilux SOLVAN Indoor T5 Grey,Silver

2 x T5 28 W, IP20, 176 x 100 x 79 mm Luminaire type
Recessed continuous line luminaire. For 2 fluorescent lamps T5 28 W.

Applications
Exhibition rooms, Offices, Conference areas, Sales rooms, Corridors, Foyers.

Mounting methods
For installation in ceiling cut-outs. Suitable for vertical and horizontal wall recessing. Continuous lines via connection of luminaire body with tool-free mounting. Cut-out ceiling installation via rapid-mounting springs. For detailed information about mounting dimensions, see the current mounting instructions.

Optical system
With ultra-low cross-section louvre, highly specular. With reflection-intensifying coated silver surface. Reflectance value 98%, share of diffused reflections < 3%. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 1500 cd/m² for beam angle above 65° all-round.

Luminaire body
Luminaire body of sheet steel, powder-coated, Luminaire rim executed 3 mm flat. Colour silver-grey. Dimensions (L x W) 1176 mm x 100 mm, luminaire height 79 mm. Permissible ambient temperature (ta): -20 °C - +25 °C.

Electrical version
With electronic transformer, switchable.

When the luminaire is connected to a halogen-free power cable, the cable must be protected by a heat shrink tube (TOC 6361200). This enables long-term damage to cable insulation caused by exposure to fluorescent lamp light to be avoided..
