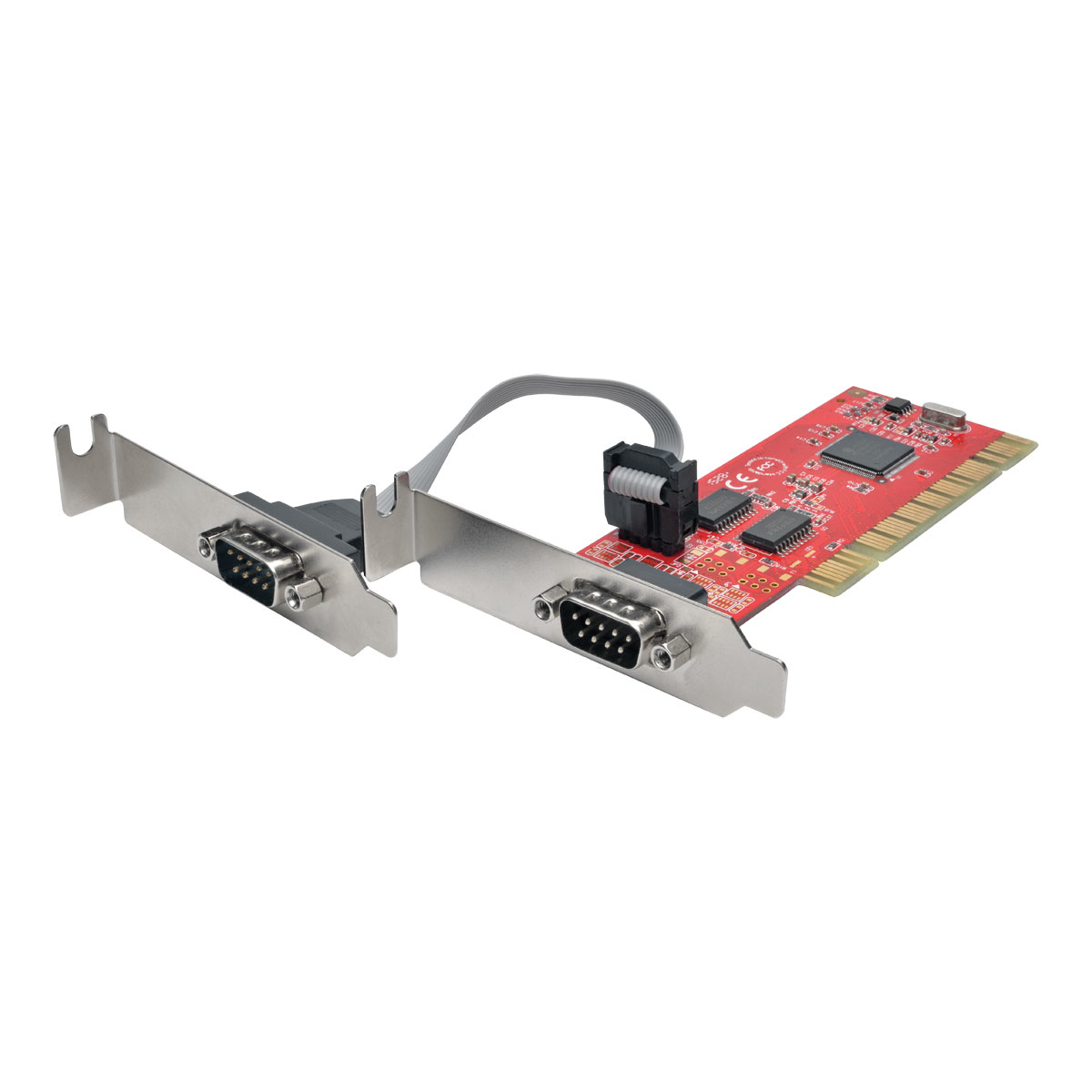

Tripp Lite 2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Low Profile interface cards/adapter

2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Low Profile The PCI-D9-02-LP 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02-LP to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer. Perfect for home or office, the PCI-D9-02-LP supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The low-profile bracket’s interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t), and connect DB9 serial extension cables (such as Tripp Lite’s P520-006) to the card’s DB9 connectors. The PCI-D9-02-LP is fully compliant with PCI Local Bus Specification Revision 2.3 and compatible with industrial standard 16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; PCI IRQ sharing and PCI power management; 5-, 6-, 7-, 8- and 9-bit serial formats; Even, Odd, None, Space and Mark parity; and 1- or 2-stop bit operation.

<b>Adds 2 DB9 (RS-232) Serial Ports to Your Computer</b>
● Upgrades your DB9 capability without buying a new computer or server
● Each port supports data transfer rates up to 115.2 Kbps
● Perfect for home or office use
● Low-profile bracket to fit shorter cases

<b>Easy to Install Inside Your Computer</b>
● Compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots
● Appropriate drivers install to your hard drive automatically

<b>Loaded with the Latest Features</b>
● Complies with PCI Local Bus Specification Revision 2.3
● Compatible with industrial standard 16550 UART
● On-chip 256-byte depth FIFO in transmit and receive paths of each port
● Supports hardware and software flow control
● Supports PCI IRQ sharing and PCI power management
● Supports 5-, 6-, 7-, 8- and 9-bit serial formats
● Supports Even, Odd, None, Space and Mark parity
● Supports 1- or 2-stop bit operation

● Each port supports data transfer rates up to 115.2 Kbps
● Complies with PCI Local Bus Specification Revision 2.3
● Compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots
● Compatible with industrial standard 16550 UART
● Works with Windows® and Linux®

<b>System Requirements</b>

● Computer with available universal 3.3V and 5V 32-bit PCI/PCI-X slot
● Windows (XP and later) or Linux (2.6.x and later)

<b>Package Includes</b>

● PCI-D9-02-LP 2-Port DB9 Serial PCI Card with 16550 UART, Low Profile
● Driver CD
● Owner’s manual
