System requirements
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
Ports & interfaces
| Video port type |
DisplayPort |
| Number of computers controlled |
1 |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB B |
| Console USB ports quantity |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Headphone outputs |
3 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB connector type |
USB Type-A, USB Type-B |
| DC-in jack |
Y |
Technical details
| USB hub |
Y |
| Display connection |
Y |
| USB version |
2.0/3.0 (3.1 Gen 1) |
Performance
| DDC/DDC2 supported |
Y |
| Number of users |
1 user(s) |

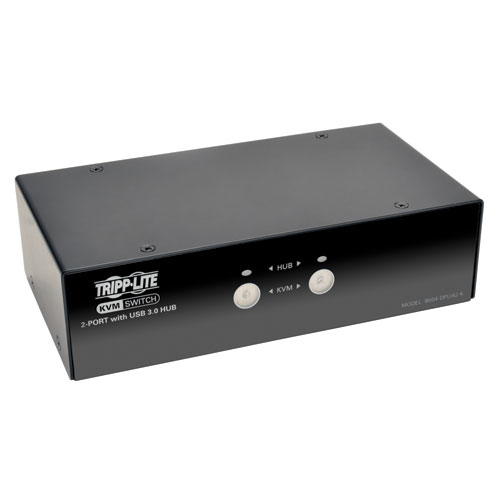

2-Port DisplayPort KVM Switch w/ Audio, Cables and USB 3.0 SuperSpeed Hub
The desktop B004-DPUA2-K 2-Port DisplayPort KVM Switch lets you access, control, boot and reboot two DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Switching between DisplayPort computers is quick and simple using keyboard hotkeys or buttons on the unit. You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks, and the two-port USB 3.0 SuperSpeed hub allows you to connect peripherals, such as a webcam, flash drive, printer or scanner, and share them with both computers. Because the audio and USB 3.0 hub ports can be accessed independently, you can, for instance, use a printer connected to the hub to print data from one computer while also listening to music from the other computer. All necessary cables are included. The B004-DPUA2-K supports digital video resolutions up to 2560 x 1600 (including 1080p), 2-channel stereo audio and data transfer rates up to 5 Gbps. The built-in DDC emulator sends the console monitor’s EDID information to all connected computers to ensure top video quality and prevent any delay or change in video resolution when switching computers. The B004-DPUA2-K is easy to set up with no software to install and supports Windows, Mac, Linux and Sun. The USB 3.0 hub is backward-compatible with USB 2.0 and USB 1.1 devices.
- Connect peripherals to built-in 2-port USB 3.0 hub
- Switch between computers via front buttons or keyboard hotkeys
- Supports digital video resolutions up to 2560 x 1600
- Supports USB 3.0 data transfer rates up to 5 Gbps
- Includes all necessary DisplayPort, USB 3.0 and audio cables
- Switch between computers using keyboard hotkeys or front-panel buttons
- Built-in DDC emulator sends console monitor’s EDID (Extended Display Identification Data) to connected computers for top video quality without delay
- Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
- 3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
- Listen to audio files on one computer while accessing the other computer
- Supports 2-channel stereo audio
- 2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
- Print documents from one computer while accessing the other computer
- Supports USB 3.0 data transfer rates up to 5 Gbps
- Backward compatible with USB 2.0 and USB 1.1 devices
- Easy to set up with no software or drivers to install
- Supports digital video resolutions up to 2560 x 1600, including 1080p
- Works with Windows, Mac, Linux and Sun
- All necessary cables included
