Video
| Maximum refresh rate |
60 Hz |
| Full HD |
Y |
Ports & interfaces
| Video ports quantity |
10 |
| Cable types supported |
Cat5, Cat5e, Cat6 |
| Video port type |
Composite |
Power
| Input current |
0.5 A |
| Input voltage |
100-240 V |
| Input frequency |
50/60 Hz |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

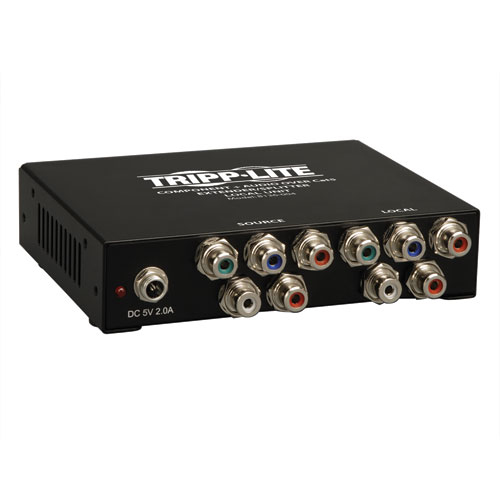

4-Port Component Video + Stereo Audio over Cat5 / Cat6 Extender Splitter, Box-Style Transmitter, Up to 213.36 m (700-ft.)
Tripp Lite's B136-004 takes a single Component Video and Stereo Audio signal and splits it to five (1 local, 4 remote). When used in conjunction with a B136-100 remote unit, you can transmit a Component Video ( YPbPr ) and Stereo Audio signal from any DVD player, PS3, or Cable/Satellite device to up to four displays over a single CAT5, CAT5E, or CAT6 cable. A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 91.44 m (300-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 121.9 m (400-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K). A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 152.4 m (500-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 213.36 m (700-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K). The number of displays can be increased to up to 13 (1 local, 12 remote) by daisychaining 3 B136-004 units together.
- Splits a single Component Video and Stereo Audio signal into five (1 local, 4 remote)
- Extends a 1080i (60Hz) Component Video and Stereo Audio signal up to 91.44 m (300-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 121.9 m (400-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- Connect up to 13 displays (1 local, 12 remote) by daisychaining 3 B136-004 units together
- Splits a single Component Video and Stereo Audio signal into five (1 local, 4 remote)
- Features an extra set of Component Video and Stereo Audio connectors for an optional local display
- Works in conjunction with a B136-100 remote unit
- A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 91.44 m (300-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 121.9 m (400-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 152.4 m (500-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 213.36 m (700-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- Connect up to 13 displays (1 local, 12 remote) by cascading 3 B136-004 units together
- Includes a 0.31 m (1-ft.) Component Video + Stereo Audio daisychain cable
- Up to 3 B136-004 units can be mounted in 1U of rack space when using a B132-004-RB Extender/Splitter 19 in. rackmount bracket
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections
