Ports & interfaces
Remote (IR) output |
2 |
Remote (IR) input |
2 |
RJ-45 input ports |
1 |
RJ-45 output ports |
1 |
Number of HDMI outputs |
1 |
HDMI in |
1 |
Technical details
Audio output channels |
7.1 channels |
HDCP & EDID bypass |
Y |
HDCP |
Y |
Cable types supported |
Cat5e, Cat6, Cat6a |
Maximum transfer distance |
100 m |
Type |
AV transmitter & receiver |
Wall mountable |
Y |
Power
Power over Ethernet (PoE) |
Y |
Input current |
1.5 A |
Operating voltage |
48 V |

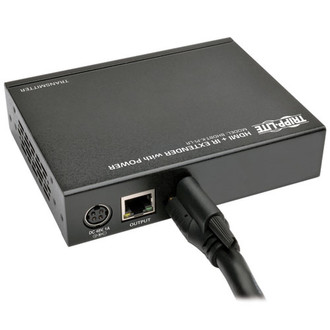

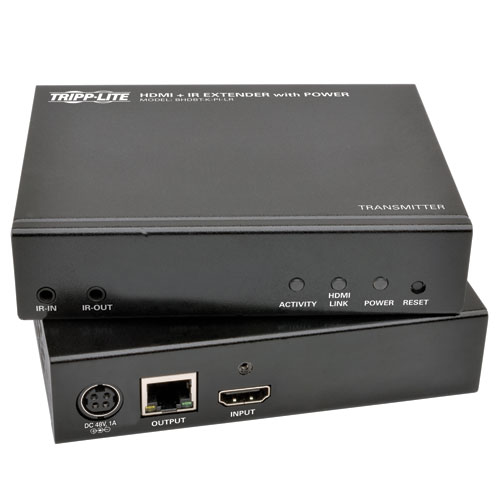

HDBaseT HDMI over Cat5e/6/6a Extender Kit with Power and IR Control, 4K x 2K UHD/1080p, Up to 99.97 m (328-ft.)
The BHDBT-K-PI-LR HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video and IR remote control signals up to 99.97 m (328-ft.) over a single Cat5e/6/6a cable, including an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal. In addition to HDMI and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source. The two-way IR remote control feature (@ 39 KHz) lets you control your Blu-ray player or other HDMI source using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-PI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware.
- Ideal for digital signs, classrooms and trade show booths
- Extends a 3840 x 2160 (4K x 2K) signal up to 99.97 m (328-ft.)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Built-in PoE technology powers receiver over Cat5e/6/6a cable
- Plug and play—no software or drivers to install
- Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
- Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 99.97 m (328-ft.)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
- Supports 3D video, EDID and HDCP
- Reduces cable clutter and installation costs
- Built-in PoE technology powers receiver over Cat5e/6/6a cable, eliminating need for external power source
- 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
- Prevent cables from coming loose or disconnected, ensuring an intact signal
- Ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors
- Plug and play with no software or drivers to download and install
- Includes mounting hardware for attaching each unit to a wall, rack or pole
