Ports & interfaces
| 3.5 mm (1/8-inch) out |
Y |
| RJ-45 input ports |
2 |
| HDMI in |
2 |
| 3.5 mm (1/8-inch) in |
Y |
| DC-in jack |
Y |
Technical details
| Baud rate |
115 Kbit/s |
| Audio output channels |
7.1 channels |
| HDCP & EDID bypass |
Y |
| Consumer Electronics Control (CEC) support |
Y |
| HDCP |
Y |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Maximum transfer distance |
100 m |
| Type |
AV transmitter & receiver |
Weight & dimensions
| Transmitter dimensions (WxDxH) |
114.3 x 63.5 x 27.94 mm |
| Transmitter weight |
249.4 g |
| Receiver weight |
226.7 g |
| Receiver dimensions (WxDxH) |
114.3 x 27.94 x 27.94 mm |
Power
| External power adapter |
Y |
| Input current |
0.5 A |
| Operating voltage |
5 V |
Packaging content
| Mounting brackets included |
Y |
| Mounting kit |
Y |
Additionally
| Colour depth |
32 bit |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |

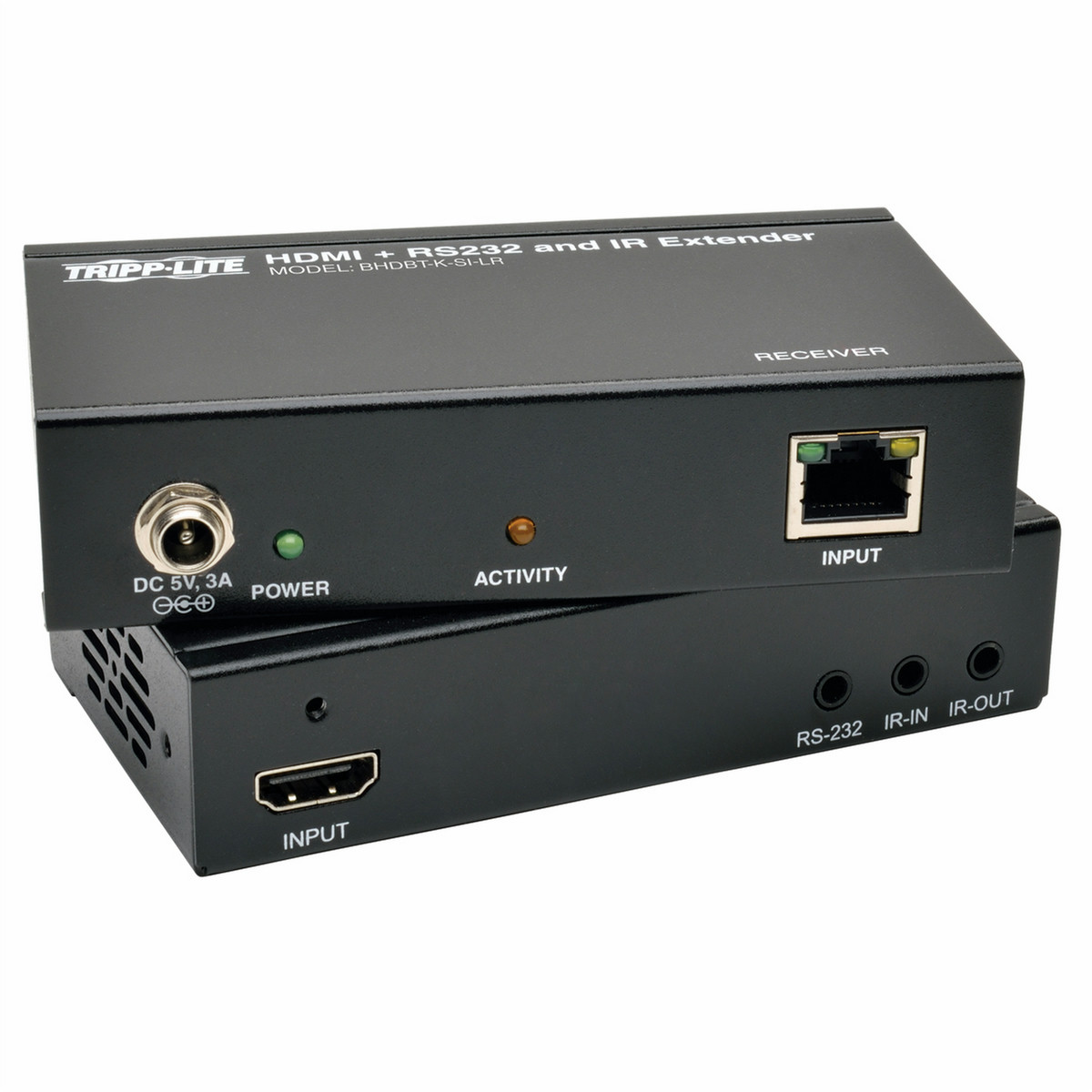

HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control, 4Kx2K UHD / 1080p, Up to 328-ft. (100M)
The BHDBT-K-SI-LR HDBaseT Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 328 feet (100 m) over a single Cat5e/6/6a cable. This includes 1920 x 1080 (1080p) signals @ 60 Hz and even Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) video signals. Add up to five Tripp Lite BHDBT-TR-SI-LR transceivers (sold separately) between the transmitter and receiver units to further expand the range up to 2,000 feet (600 m) with a monitor connected via HDMI port to each transceiver. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI-LR’s 2-way IR Remote Control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The BHDBT-K-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There’s no software to download or install, and you can have the BHDBT-K-SI-LR Extender Kit set up and ready to go quickly.
- Extends a 1080p @ 60 Hz signal up to 328 feet (100 m)
- Extends a 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Allows you to control a Blu-ray player from a remote monitor
- Extends a High Definition 1920 x 1080 (1080p) @ 60 Hz signal up to 328 feet (100 m)
- Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
- Accepts up to five BHDBT-TR-SI-LR transceivers and six total monitors to further expand the range up to 2,000 feet (600 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
- Supports 36-bit Deep Color (12 bits per channel), CEC pass-through, 3D video, EDID and HDCP
- 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
- RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors
- Plug-and-play engineering means no software or drivers to download and install
- Ready to use in minutes

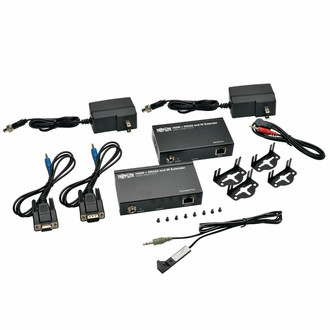

- Included mounting hardware lets you install each unit on a wall, rack or pole

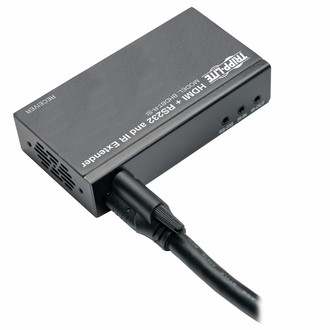

- Locking HDMI ports (for use with Tripp Lite High Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or disconnected, ensuring an intact signal
