Technical details
| Audio system |
Multichannel |
| Cable types supported |
Cat5, Cat5e |
| Maximum transfer distance |
45.72 m |
| Type |
AV repeater |

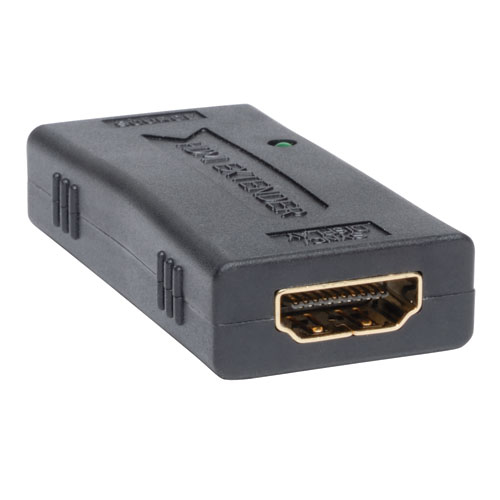

HDMI In-Line Signal Booster/Extender, 1920x1200 at 24Hz/1080p (HDMI F/F)
Tripp Lite's B122-000 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, as well as a maximum distance of 46 m (150-ft.) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 23 m (75-ft.), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 30.5 m (100-ft.) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 15 m (50-ft.). A 3D signal can be extended up to 38 m (125-ft.) using 24Awg HDMI cable. Simply connect the longer cable between the source and the B122-000, and the shorter cable (5 m (16-ft.) or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.
● Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 46 m (150-ft.) from the source
● Use P568-Series HDMI cables in most applications
● When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 23 m (75-ft.), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 30.5 m (100-ft.) are available from Tripp Lite as a custom order)
● 24Awg HDMI cable is also needed when extending a 3D signal more than 15 m (50-ft.) A 3D signal can be extended up to 38 m (125-ft.) using 24Awg HDMI cable
● Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
● HDCP compliant
● No software or drivers required
