Ports & interfaces
RJ-45 input ports |
1 |
HDMI in |
1 |
USB connector type |
Micro-USB B |
USB ports quantity |
1 |
Technical details
Audio output channels |
7.1 channels |
Maximum refresh rate |
60 Hz |
HDCP |
Y |
Cable types supported |
Cat5, Cat6 |
Maximum transfer distance |
30.5 m |
Type |
AV transmitter & receiver |
Additionally
Colour depth |
24 bit |
Ethernet LAN connection |
Y |

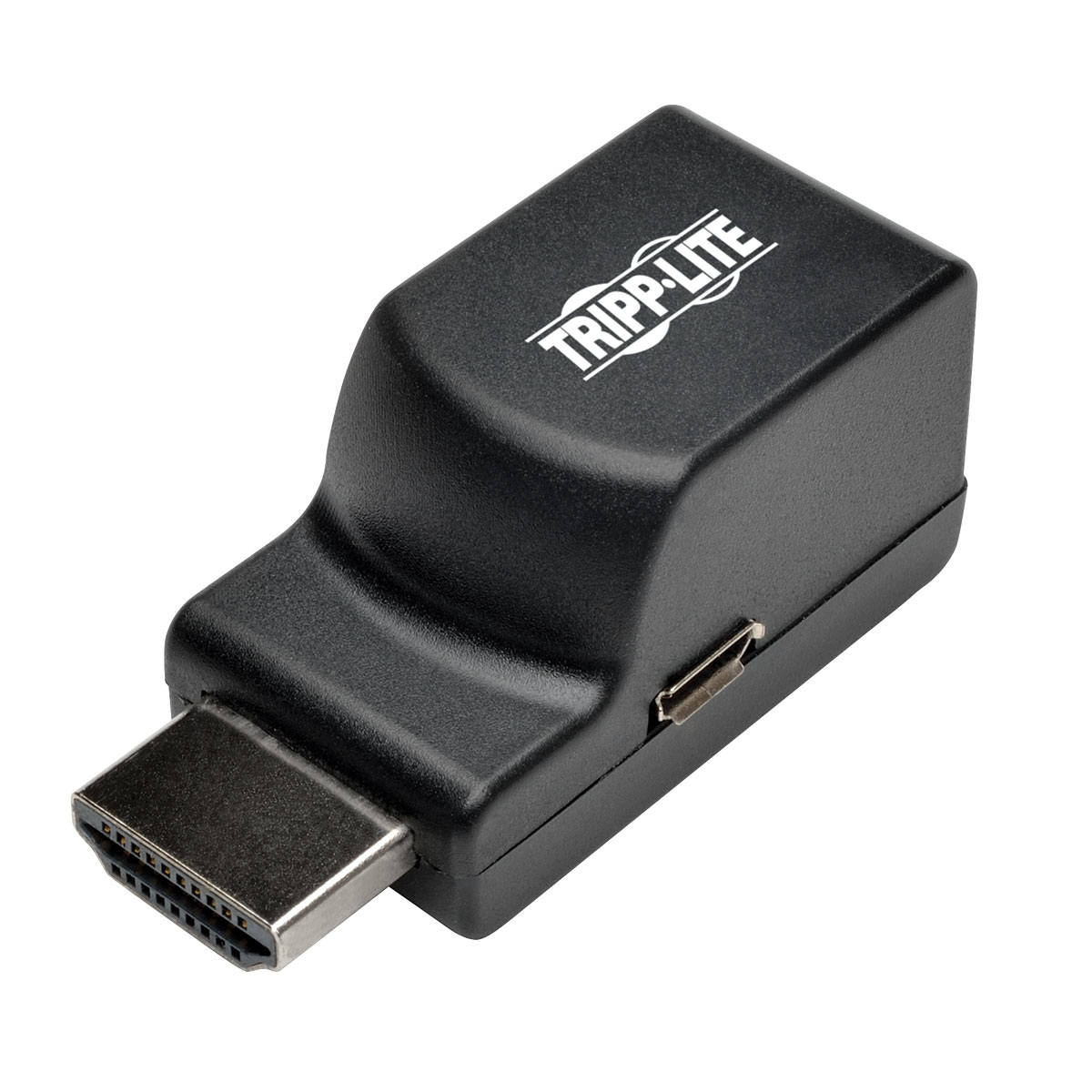

HDMI over Cat5e/Cat6 Passive Extender, Low-Profile Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 30.5 m
The B126-1P0-MINI HDMI over Cat5/Cat6 Passive Extender, Low-Profile Remote Receiver works with Tripp Lite’s B126-002 and B126-004 transmitters (sold separately) to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It’s recommended for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.
The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI’s built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100 feet (30.5 m) or a 1080p (@ 60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (such as Tripp Lite’s N202-Series) between this unit and the transmitter.
In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required.
Extends High-Definition Signals
● Works in tandem with Tripp Lite’s B126-002 and B126-004 transmitter units (sold separately)
● Extends a 1080i (@ 60 Hz) signal up to 100 ft. (30.5 m)
● Extends a 1080p (@ 60 Hz) signal up to 15.24 m

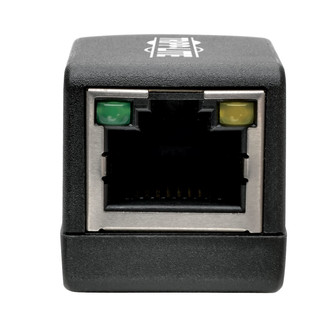

● Connects to transmitter with one Cat5e/6 cable

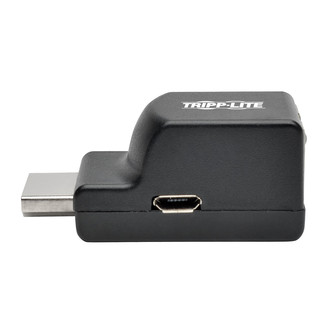

● Built-in HDMI male connector plugs directly into monitor
Supports the Latest Video and Audio Resolutions
● Works with all operating systems and HDMI video sources
● Supports stereo and 7.1-channel surround sound (multi-channel or PCM) when paired with B126-002 or B126-004
● Supports 24-bit True Color (8 bits per channel) and HDCP
Easy to Set Up and Use
● Plug-and-play engineering—no software or drivers necessary
● No external power required; included USB Micro-B cable provides extra power when necessary
● Compact, low-profile design hides unit from view
● Supports high-definition video resolutions up to 1080p (@ 60 Hz)
● Supports stereo and 7.1-channel surround sound audio
● Works with all operating systems and HDMI video sources
● Plug-and-play—no software, drivers or external power supply
Package Includes
● B126-1P0-MINI HDMI over Cat5/Cat6 Passive Low-Profile Remote Receiver
● USB Micro-B cable
● Owner’s manual
