Power
| External power adapter |
Y |
| Current |
2 A |
| Operating voltage |
5 V |
Technical details
| Maximum transfer distance |
38.1 m |

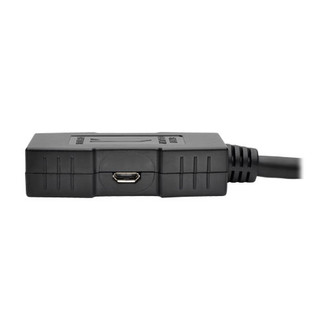

HDMI Signal Booster/Extender Cable 0.31 m (1-ft.), 1920x1200 at 60Hz/1080p (HDMI M/F), Up to 38 m (125-ft.)
Tripp Lite's B123-001-60 HDMI Signal Extender increases the distance a 1080p @ 60Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.) It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz, at a maximum distance of 38 m (125-ft.) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 60Hz (or 1920 x 1200) signal more than 23 m (75-ft.), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 30.5 m (100-ft.) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 15 m (50-ft.) A 3D signal can be extended up to 38 m (125-ft.) using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001-60, and the built-in cable between the adapter and the monitor/TV. Software or drivers are not required. HDCP compliant.
- Extend a 1080p @ 60Hz (or 1920 x 1200) HDMI signal up to 38 m (125-ft.) from the source
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- No external power required in most installations
- B123-001-60 HDMI Active Extender
- Extend a 1080p @ 60Hz (or 1920 x 1200) HDMI signal up to 38 m (125-ft.) from the source
- Use P568-Series HDMI cables in most applications
- When extending a 1080p @ 60Hz (or 1920 x 1200) signal more than 23 m (75-ft.), use cable made with 24Awg wiring, such as the P568-100-HD.
- Lengths over 31 m (100-ft.) are available from Tripp Lite as a custom order)
- 24Awg HDMI cable is also needed when extending a 3D signal more than 15 m (50-ft.) A 3D signal can be extended up to 38 m (125-ft.) using 24Awg HDMI cable
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- No external power required in most installations
- HDCP compliant
- No software or drivers required
