Ports & interfaces
| Audio connections |
N |
| PS/2 ports quantity |
2 |
| Mouse port type |
PS/2 |
| Keyboard port type |
PS/2 |
| Number of computers controlled |
1 |
| Video port type |
VGA |
Display
| On Screen Display (OSD) |
Y |
| Built-in display |
N |
Performance
| Maximum operating distance |
110 m |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

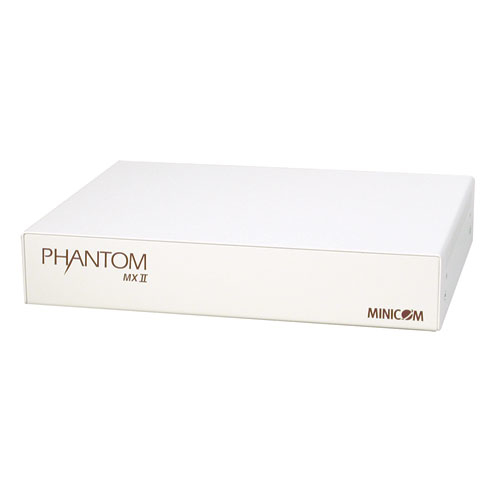

Multi-User Unit f/ Universal Phantom Manager, VGA, USB / PS/2
The revolutionary Phantom MXII KVM switching solution takes server management to a higher level of operation. Now two Phantom users can simultaneously control and manage up to 63 servers in mixed, multi-platform environments (PS/2, SUN, RS-232, USB) from two separate KVM consoles. This makes it an ideal solution for larger data centers that require more than one supervisor and need the flexibility of operating from both local and remote locations.
Advanced Management and Security Options
The Phantom MX II features advanced On Screen Display (OSD) management, including multi-layered security, making it the most efficient way of monitoring, accessing and controlling your servers.
You can also manage your Phantom system, via serial port, using the Phantom's Control Software or any other third party software.
Less Switch Space Means More Server Space
Phantom's Distributed Switching Technology (DST) divides the KVM switch into smaller subunits: two Managers and multiple Remote units. The Remote units can be placed on the side or back of the rack (Specter II Units) where they occupy no rack space! Now you can dedicate more of your rack to servers instead of wasting space on switches.
Components
The Phantom MX II system consists of the following units:
- 1 0SU52016 Phantom MX II Manager unit per system
- 1 0SU52015 Universal Phantom Manager per system
- 1 0SU51011 Specter II USB or 0SU51012 Specter II PS/2 Remote unit per computer; up to 63 per line
