Tripp Lite NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch, 2+1 Users, 19 in. LCD, IP Remote Access

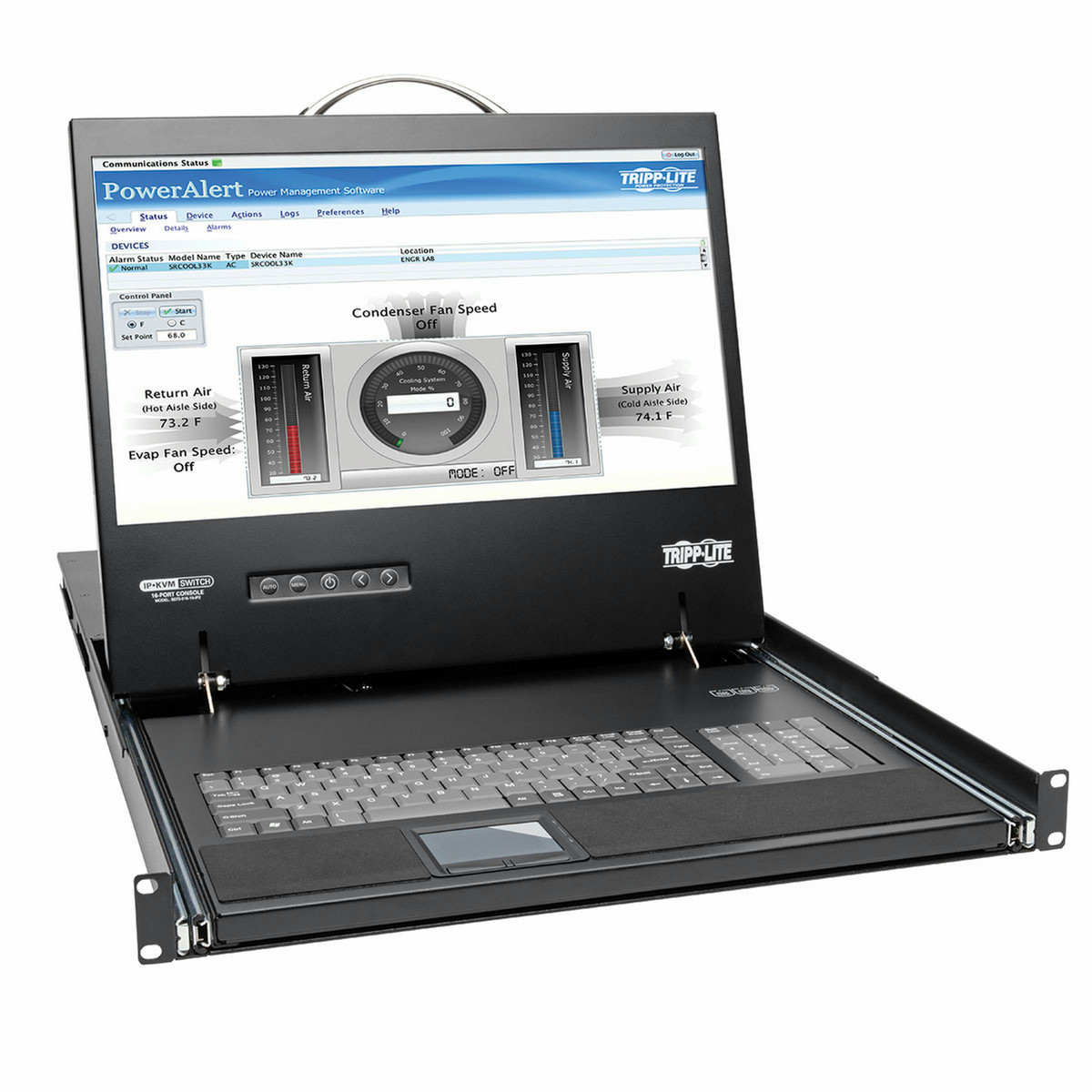

NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch, 2+1 Users, 48.26 cm (19 ") . LCD, IP Remote Access Tripp Lite’s B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.

Connect computers/servers up to 30 m away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.

The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use.

Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.

Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad

● Mounts in 1U of space in EIA-standard 19 in. rack
● Connects up to 16 computers/servers up to 30 m away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
● Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
● Fast Virtual Media KVM system: U.S. Patent #9,417,720
● BIOS-level control of any server brand and model

IP Remote Access for Fewer Trips to the Server Room

● Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
● Non-browser client that can bypass browser-related Java security prompts is available
● Up to 3 users (1 local, 2 remote) can sign in simultaneously
● Up to 5 users can share a single session
● Supports both IPv4 and IPv6
● Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail

Simplifies IT Tasks

● Users can switch between ports via on-screen display, hotkeys or remote toolbar
● Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
● Assign individual ports to an IP PDU port to power on/off the server connected to that port
● Virtual Media allows .iso file to be mounted to target server and accessed directly
● Supports RADIUS and LDAP/S authentication
● Log tracks events on your installation

Large 19 in. LCD Screen

● Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
● DDC emulation allows for optimal output to LCD

Advanced Security Features

● Multi-level password protection—create administrator accounts with full access and user accounts with limited access
● 128-bit AES and HTTPS encryption for highest security standards

Free NetCommander-AXS Management Software

● Access and manage all of your NetCommander IP KVM switches from one interface
● Access server ports on any KVM, power cycle or power on/off outlets of IP PDUs, and manage KVM settings
● Free download available at Technical Support link in right-hand column

● 19 in. LCD supports video resolutions up to 1366 x 768
● Cat5e/6 cabling connects computers/servers up to 30 m away
● Simultaneous support for 3 users—1 local, 2 remote
● Supports IPv4 and IPv6
● Mounts in 1U of space in EIA-standard 19 in. rack

System Requirements

● Computer/server with HD15 or USB port and PS/2 keyboard/mouse ports
● B078-Series SIU and Cat5e/6 cabling required for each connected computer/server
● Windows or Linux operating system (Windows required for remote access)
● Remote console computers require minimum Pentium 4 with 2 GB memory
● For international use P054-006 SCHUKO and P056-006-10A BS-1363 power cords available for purchase

Package Includes

● B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
● C13 to NEMA 5-15P power cord, 1.83 m
● Rack-mounting hardware
● Quick Start Guide

Batteries not Required to Operate
