Data transmission
| MAC address table |
16000 entries |
| Switching capacity |
52 Gbit/s |
| Jumbo frames |
10000 |
Security
| IP-MAC-Port binding |
Y |
| Access Control List (ACL) |
Y |
Networking
| VLAN support |
Y |
| DHCP client |
Y |
Ports & interfaces
| Console port |
RJ-45 |
| Installed SFP modules quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
240 W |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
24 |
Management features
| Switch layer |
L2 |
| Reset button |
Y |
| Web-based management |
Y |
Design
| LED indicators |
Y |
| Case design |
Built-in |
| Form factor |
1U |
| Rack mounting |
Y |
Operational conditions
| Operating altitude |
0 - 3000 m |

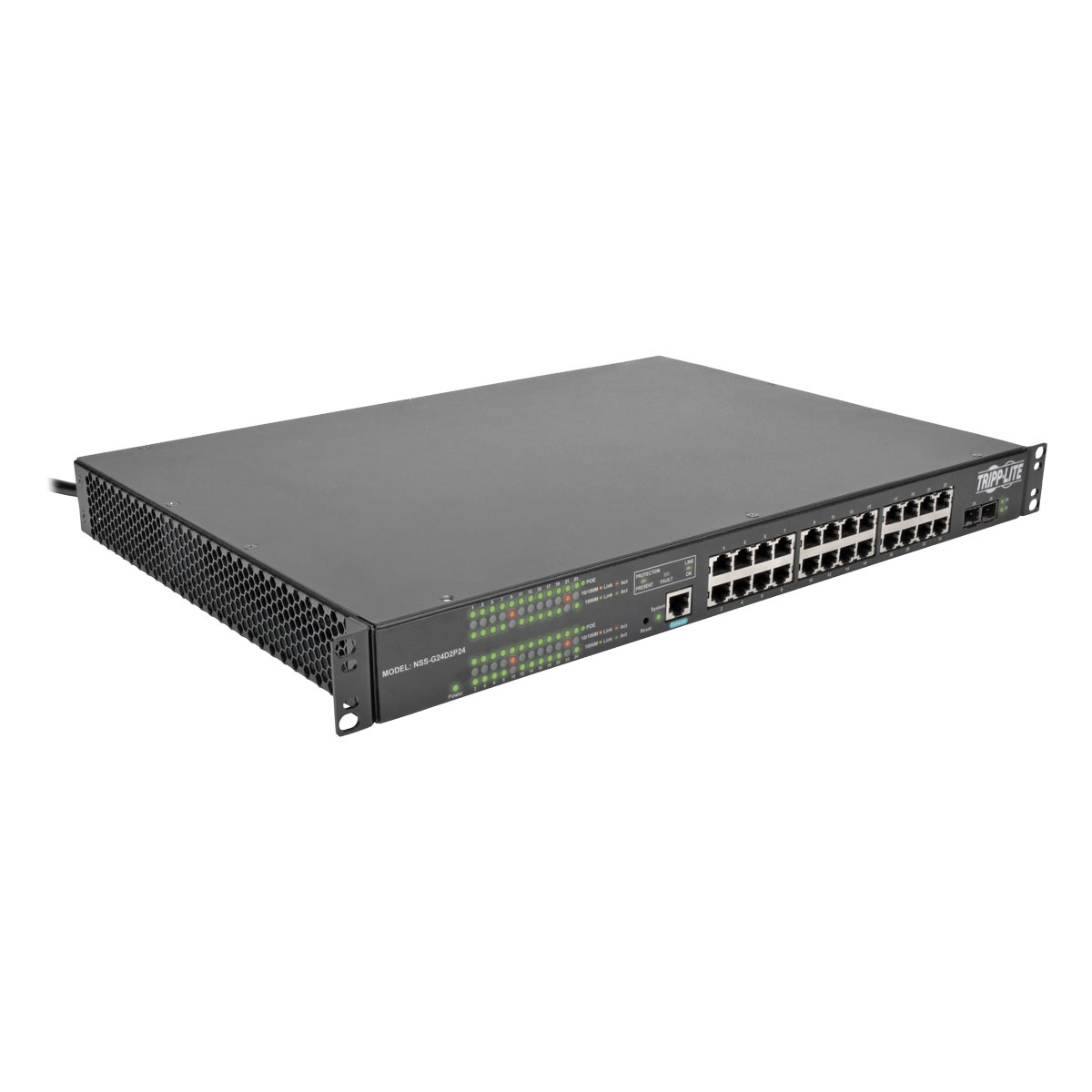

24 10/100/1000Mbps Port Gigabit L2 Managed PoE+ Switch, 2 Dedicated SFP Gigabit Slots, 52Gbps, Web/CLI, 12-Outlet 120V PDU
The energy-efficient NSS-G24D2P24 24-Port PoE+ Gigabit L2 Managed Network Switch does more than complete your home or office LAN. It also features a basic 120V 15A PDU to distribute reliable AC power to critical IT equipment in your wiring closet, server room or equipment rack. Two dedicated Mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
This switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Each port can be configured to supply up to 30W of PoE+ (Power over Ethernet) power via network cable to connected devices, such as VoIP phones and video cameras. Easy-to-read LEDs indicate connection and activity status for each port. Built-in management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The rear panel contains 12 NEMA 5-15R outlets that supply continuous power to connected devices. Your equipment is protected by 3860 joules of Isobar surge suppression, as well as front-panel LEDs that let you monitor line status at a glance. A 12A circuit breaker trips if the current drawn by connected equipment exceeds the PDU’s maximum load rating.
The NSS-G24D2P24 supports IEEE802.3az Energy Efficient Ethernet standards. The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included hardware.
Combines a fully managed 24-port PoE+ Gigabit network switch with a basic PDU with Isobar Surge Suppression in one space-saving 1U rack-mount unit. Ideal for monitoring and controlling an LAN and powering equipment in a small-to-medium distributed network.
- IP-MAC-Port-Binding, ACL, Storm Control
- Port Security, DHCP Snooping, 802.1x, L2
- WEB/CLI management, SNMP, RMON features
- 24 PoE+ ports and 2 dedicated Mini-GBIC SFP slots
- Enterprise-level, security and layer 2 management
- Cost-effective form factor for small and medium businesses
- Built-in 12-outlet PDU
- 3860 Joule suppression rating, Diagnostic LEDs
