Other features
| Non-operating relative humidity (non-condensing) |
0 - 95% |
| Input connection type |
IEC-C20 |
| Output connections |
8 x IEC-C13 |
Power
| Input operation voltage (max) |
240 V |
| Input operation voltage (min) |
220 V |
| Output power capacity |
3000 VA |
| Crest factor |
3:1 |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output power |
2100 W |
Performance
| Audible alarm(s) |
Y |
| UPS topology |
Double-conversion (Online) |
Ports & interfaces
| Power plug |
C20 coupler |
| AC outlets quantity |
8 AC outlet(s) |
Battery
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
5 min |

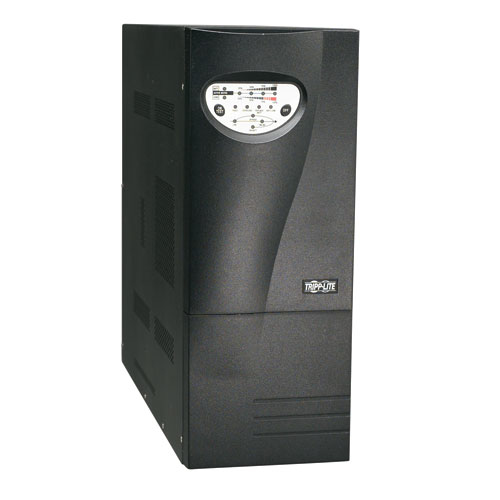

SmartOnline 220-240V 3kVA 2.1kW On-Line Double-Conversion UPS, SNMP, Webcard, Tower, C20 inlet, DB9 Serial
Tripp Lite's SmartOnline SUINT3000XL on-line, double-conversion UPS protects critical server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Space-saving upright tower format. Large capacity 3000VA/2100W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at selectable 220/230/240V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS types. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 8 C13 outlets. Battery support can be extended through the addition of external battery packs (part# BP72V18). Includes slot for internal SNMP/Web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data.
- True on-line, double conversion UPS provides pure sine wave AC output at all times
- Maintains continuous operation with zero transfer time through blackouts, voltage fluctuations and surges
- Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
- Corrects brownouts and overvoltages from 175-280V at full load. Input voltage range extends to 80-280V at 50% load or less
- 3000VA/2100W power capacity with 8 C13 outlets
- IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
- Standard internal battery set provides 14 min. runtime at half load and 5 min. runtime at full load
- Expandable runtime with multiple external battery packs (part# BP72V18 MULTI-PACK COMPATIBLE)
- DB9 serial port for network interface; SNMP compatible
