Power
| Power factor |
0.6 |
| Input operation voltage (max) |
240 V |
| Input operation voltage (min) |
220 V |
| Maximum current |
3 A |
| Surge energy rating |
350 J |
| Output power capacity |
1050 VA |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output power |
650 W |
Other features
| Non-operating relative humidity (non-condensing) |
0 - 95% |
Performance
| Surge protection |
Y |
| Audible alarm(s) |
Y |
Ports & interfaces
| Power plug |
C14 coupler |
| AC outlets quantity |
8 AC outlet(s) |
Battery
| Battery recharge time |
4 h |
| Typical backup time at half load |
20 min |
| Typical backup time at full load |
7 min |

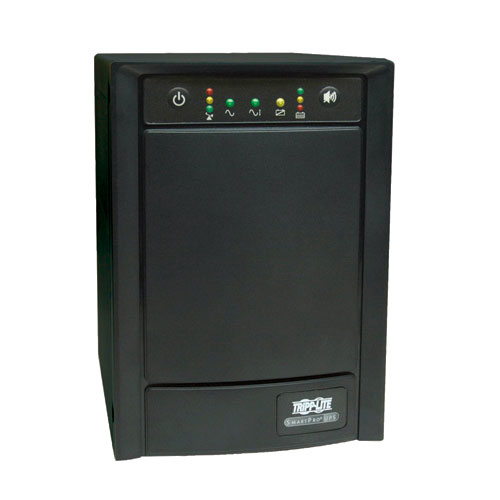

SmartPro 230V 1050VA 650W Line-Interactive Sine Wave UPS, SNMP, Webcard, Tower, USB, DB9 Serial
Tripp Lite's SMX1050SLT intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 min. half load runtime and 7 min. full load runtime. 1050VA/650W power handling capability and full-time sine wave output offer guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 8 UPS-protected C13 output receptacles. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications. Communications interfaces support messaging of UPS and line power status, plus output power control for delayed or immediate reboot of all connected devices at once. Includes PowerAlert UPS monitoring and unattended shutdown software with management support for an unlimited number of network UPS systems. Single-line tel/DSL and network Ethernet line surge suppression. Built-in audible alarm and 9 LEDs offer status notification for line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, all-black tower housing.
- SMX1050SLT line-interactive UPS offers battery-derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
- 1050VA/650W power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
- Large internal batteries offer runtimes of 20 min. at half load (525VA/325W) and 7 min. at full load (1050VA/650W)
- Automatic voltage regulation (AVR) circuits maintain user-selectable 220V, 230V or 240V nominal output over an input voltage range of 174-266V (220V), 182-278V (230V) or 190-290V (240V)
- 8 x C13 output receptacles
- IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
- PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging and running of user-defined script commands
- Offers simultaneous monitoring by up to 3 directly connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
