Tripp Lite VGA over Cat5 / Cat6 Extender Kit, Box-Style Transmitter and Repeater, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.) video splitter

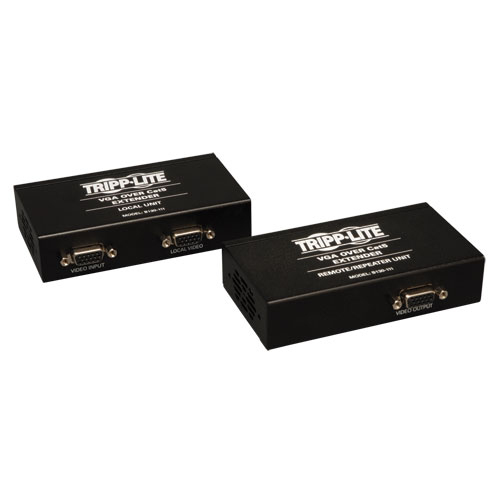

VGA over Cat5 / Cat6 Extender Kit, Box-Style Transmitter and Repeater, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.) Tripp Lite’s B130-111 extender/repeater kit comes with both local transmitter and remote/repeater units. By connecting additional receiver B132-100-1 or B132-100-WP-1 or repeater B132-110) units, you can locate multiple monitors at different points in a chain of up to 609.6 m (2,000 ft.) With Tripp Lite’s standard transmitters and receivers, a single VGA monitor can be located up to 304.8 m (1,000-ft.) from the source. By inserting a remote/repeater unit in between, the signal can be regenerated and extended to another monitor up to an additional 304.8 m (1,000-ft.) away. A monitor can be connected to both the remote/repeater and the receiver, allowing the signal to be transmitted to both points in the chain. Up to 4 remote units (3 remote/repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays located at different points in the installation. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K.Equalization and Gain controls are built into the remote/repeater unit for the adjustment of the video image. Mounting hardware is included for both the local and remote units, allowing them to be wall mounted, rackmounted, or pole mounted.

- Kit comes with both local transmitter and remote/repeater units
- Locate multiple monitors at different points in a chain of up to 609.6 m (2,000 ft.) by connecting additional receiver (B132-100-1 or B132-100-WP-1) or repeater B132-110) units
- Up to 4 remote units (3 repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

- Kit comes with both local transmitter and remote/repeater units.
- Locate multiple monitors at different points in a chain of up to 609.6 m (2,000 ft.) by connecting additional receiver (B132-100-1 or B132-100-WP-1) or repeater (B132-110) units
- Up to 4 remote units (3 repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K
- Extend a 1920 x 1440 (60Hz) signal up to 152.4 m (500-ft.), or a 1024 x 768 (60Hz) signal up to 304.8 m (1,000-ft.), between the local transmitter and the first remote/repeater in the installation.
- Extend a 1920 x 1440 (60Hz) signal up to an additional 152.4 m (500-ft.), or a 1024 x 768 (60Hz) signal up to an additional 304.8 m (1,000-ft.), from the first remote/repeater unit to the last display in the installation.
- Features built-in Equalization and Gain controls for video image adjustment.
- Includes mounting hardware that allows wall mounting, rackmounting or pole mounting.
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections
