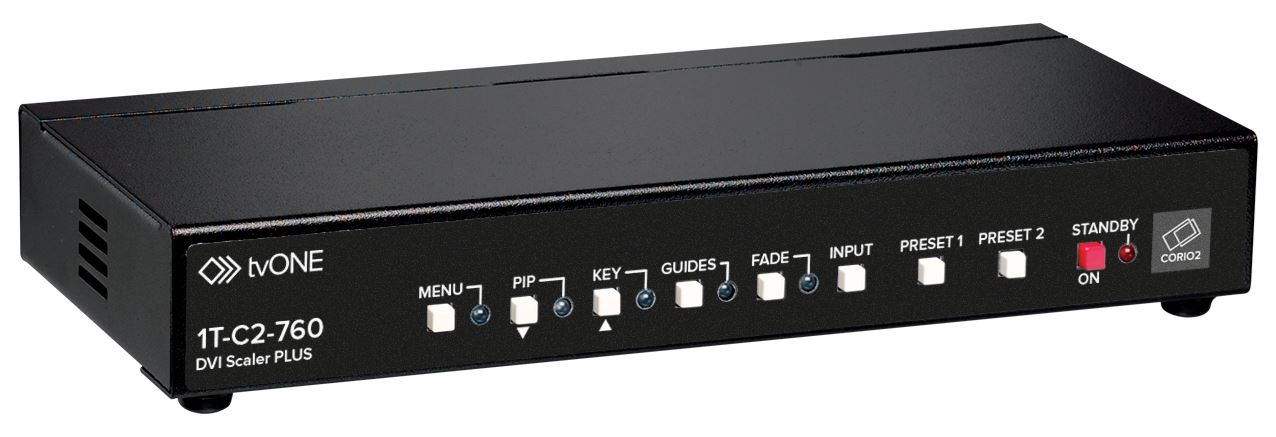

TV One 1T-C2-760 video capture board

DVI Scaler, 2x DVI-I in, 1x DVI-I out, RS-232 control, Black DVI Scaler is based on TV One’s exclusive CORIO2 technology and has a single Enhanced-Bandwidth high quality graphic scaler capable of working at full DVI video rates. The scaler can be used to convert digital DVI-D or analog DVI-A signals to another format, with full picture-in-picture flexibility.

The unit can also be used as a Seamless Switcher device, enabling the user to toggle between the two DVI inputs with cuts or other transitions. A Still Image Store is built into the unit which can store ten graphic images to be used by the scaler to add custom logos or masks.

Edge-blending is fully supported, complete with variable blend widths, gamma correction, and projector black-level adjustments. Two units can thus be used to create a large wide-screen display using two matched projectors.

Advanced Features include Genlock, Chromakey, Lumakey and Mixing. The Key Mode allows computer graphics to be keyed over each other (one scaled input over or behind a non-scaled input). The images may be faded in and out. Due to the 4:4:4 sampling format, precise keying at the pixel level can be achieved. The PIP mode allows either input to be inset into a window over the other input.
