BIOS
BIOS memory size |
2 MB |
BIOS type |
Phoenix |
Ports & interfaces
Serial ports quantity |
1 |
PS/2 ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Storage
Controller interface type |
SATA-II |
Hot-swap hard drive bays |
Y |
Number of hard drives supported |
4 |
Other features
Standard fans |
5 x 40mm |
Drive bays |
4 x 3.5'' |
Networking speed |
10/100/1000Mbit/s |
Motherboard |
Thunder n3600R |
Graphics
Maximum graphics adapter memory |
32 MB |
Memory
Number of DIMM slots |
8 |
ECC |
Y |
Memory voltage |
1.8 V |
Maximum internal memory |
64 GB |
Performance
Optical drive type |
DVD-ROM |
Networking
Networking features |
Gigabit Ethernet |
Additionally
Graphics |
ES1000 |
Ethernet LAN (RJ-45) ports quantity |
2 |

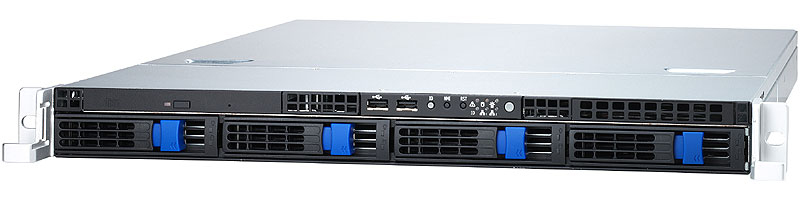

B2912G24V4H-E, 1U, GT24, EATX, LGA 1207-pin, DVD-ROM, ATI ES1000 (32MB), PCI-E, 8xDIMM DDR2, 5x40mm fans, 4x3.5", 4xUSB, 500W PSU, 18000g, silver
B2912G24V4H-E
- Dual LGA 1207-pin sockets support up to (2) AMD 45nm Quad-Core;
- OpteronTM 2300 series processors;
- Support AMD Dual Dynamic Power Management (DDPM) feature;
- nVIDIA nForce® Professional 3600 (NFP 3600);
- (8) 240-pin DDR2 DIMM slots support up to 64GB registered DDR2;
- 800/667/533/400 w/ ECC memory;
- (1) Full-Height/ Full-Length PCI-E x16 slot (via M2083-RS);
- (1) Full-Height/ Half Length PCI-E x8 slot (via M2081-2);
- (4) hot-swap 3.5" SAS HDD bays w/ RAID 0, 1, 1E support;
- (B2912G24W4H-E);
- (4) hot-swap 3.5" SATA-II HDD bays w/ RAID 0, 1, 0+1, 5 support;
- (2) GbE LAN;
- (1) EPS1U 500W PSU w/ PFC;
- Optional TYAN® M3295-2 SMDC for IPMI v2.0 support.
