BIOS
BIOS memory size |
1 MB |
BIOS type |
AMI |
Ports & interfaces
Serial ports quantity |
1 |
PS/2 ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Storage
Controller interface type |
SATA-II |
Hot-swap hard drive bays |
Y |
Number of hard drives supported |
8 |
Other features
Standard fans |
2 x 80mm/1 x 60mm |
Drive bays |
8 x 3.5'' |
Networking speed |
10/100/1000Mbit/s |
Motherboard |
Thunder h2000M S3992-E |
Expansion slots
PCI-X slots |
3 |
PCI slots |
1 |
PCI Express x16 slots |
2 |
Graphics
Maximum graphics adapter memory |
32 MB |
Memory
Number of DIMM slots |
16 |
ECC |
Y |
Memory voltage |
1.5 V |
Maximum internal memory |
128 GB |
Performance
Optical drive type |
DVD-ROM |
Networking
Networking features |
Gigabit Ethernet |
Additionally
Graphics |
ES1000 |
Ethernet LAN (RJ-45) ports quantity |
3 |

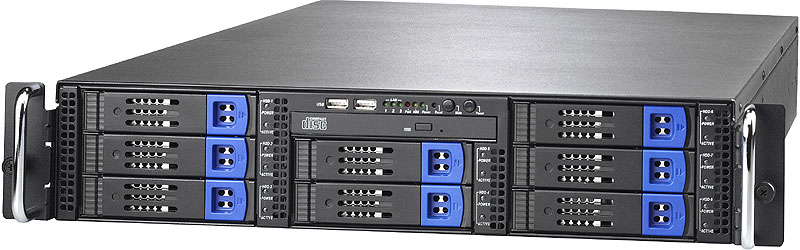

B3992T26V8HR-E, 2U, TA26, EATX, LGA 1207-pin, ATI ES1000 (32MB), DVD-ROM, PCI/PCI-E/PCI-X, 16xDIMM DDR2, 2x80mm/1x60mm fans, 8x3.5", 4xUSB, 600W PSU, 25000g, black
B3992T26V8HR-E
- Dual LGA 1207-pin sockets support up to (2) AMD 45nm Quad-Core OpteronTM 2300 series processors;
- Support AMD Dual Dynamic Power Management (DDPM) feature ServerWorks® HT-2000 + HT-1000;
- (16) 240-pin DDR2 DIMM slots support up to 128GB registered DDR2 667/533/400 w/ ECC memory;
- (2) Low-Profile PCI-E x16 slots (w/ x8 link);
- (2) Low-Profile PCI-X 64/133MHz slots;
- (1) Low-Profile PCI-X 64/100MHz slot;
- (1) Low-Profile PCI 32/33MHz slot;
- (8) hot-swap 3.5" SATA-II HDDs w/ RAID 0, 1, 0+1, 5 support;
- 8-port SAS/SATA-II feature can be implemented by TYAN® M9000 TARO card or 3rd party add-on card;
- Required add-on card should be ORDERED SEPARATELY;
- (2) GbE & (1) FE LAN;
- (1+1) ERP2U 600W PSU w/ PFC (B3992T26V8HR-E).
