BIOS
BIOS memory size |
1 MB |
BIOS type |
Phoenix |
Ports & interfaces
Serial ports quantity |
1 |
PS/2 ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Other features
Standard fans |
5 x 40mm |
Drive bays |
4 x 3.5'' |
Networking speed |
10/100/1000Mbit/s |
Motherboard |
Tempest i5400PW S5397 |
Storage
Controller interface type |
SAS |
Supported storage drive interfaces |
SAS |
Hot-swap hard drive bays |
Y |
Number of hard drives supported |
4 |
Graphics
Maximum graphics adapter memory |
32 MB |
Memory
Number of DIMM slots |
16 |
Memory voltage |
1.8 V |
Maximum internal memory |
128 GB |
Networking
LAN controller |
Intel 82563EB |
Networking features |
Gigabit Ethernet |
Performance
Optical drive type |
DVD-ROM |
Additionally
Ethernet LAN (RJ-45) ports quantity |
2 |

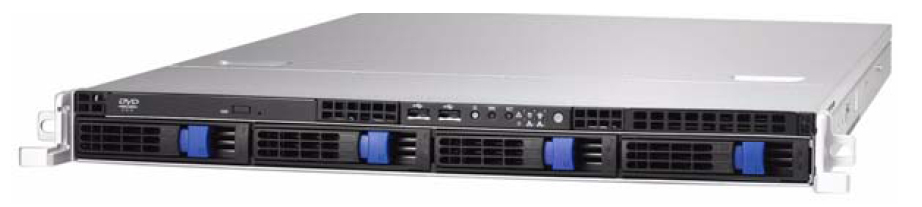

B5397G24W4HR, 1U, GT24, EATX, LGA771, XGI Volari Z9s, PCI-E, 16xDIMM DDR2, 5x40mm fans, 4x3.5", 4xUSB, 650W PSU, 18000g, silver
B5397G24W4HR
- Dual LGA 771-pin sockets support up to (2) Intel® Xeon® Quad-Core/ Dual-Core 5100/ 5200/ 5300/ 5400 series processors;
- Support FSB 1600/ 1333/ 1066MHz;
- Intel® 5400B MCH;
- Intel® 6321ESB South Bridge;
- (16) 240-pin FB-DIMM slots support up to 128GB FBD 800/667/533 memory;
- (1) Full-Height/ Full-Length PCI-E x16 slot (via M2083-RS);
- (4) SAS HDDs w/ RAID 0, 1, 1E support (B5397G24W4H/B5397G24W4HR);
- (4) SATA-II HDDs w/ RAID 0, 1, 5, 10 support;
- (2) GbE LAN;
- (1) EPS1U 600W PSU w/ PFC (B5397G24V4H/ B5397G24W4H);
- (1+1) ERP1U 650W PSU w/ PFC (B5397G24W4HR);
- (1) OPMA slot for optional TYAN M3295-2/ M3296 SMDC support.
