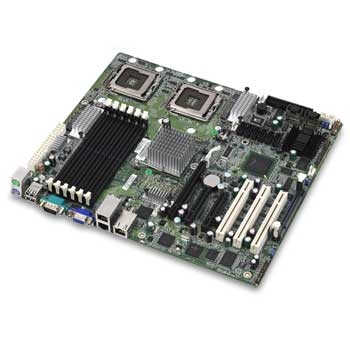

Tyan S5376WAG2NR Intel 5100 Socket J (LGA 771) SSI CEB motherboard

Tyan S5376WAG2NR Intel 5100 Socket J (LGA 771) SSI CEB motherboard

MPN: S5376WAG2NR
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor SSI CEB

BIOS

BIOS memory size 1 MB
BIOS type AMI

Other features

Controller interface type SATA

Internal I/O

Number of SATA connectors 6
Power fan connector Y
CPU fan connector Y

Graphics

Maximum graphics adapter memory 32 MB

Expansion slots

PCI Express x16 slots 1
PCI Express x8 slots 2

Memory

Memory voltage 1.5 V
Number of memory slots 6
Maximum internal memory 48 GB

Back panel I/O ports

PS/2 ports quantity 1
VGA (D-Sub) ports quantity 1

Networking

Networking features 10/100/1000

Additionally

Chipset Intel 5100
Graphics XGI Z9s
Ethernet LAN (RJ-45) ports quantity 2
Tempest i5100W Intel 5100 This flexible 1U server/workstation DP platform that supports the 45nm Intel Xeon processors is highly scalable for server management environments. It offers DDR2 memory, SATA2 and SAS ports, with the addition of a PCI-E x16. Delivers more than just performance and scalability, the S5376 is an energy saving platform offered to the users seeking a very cost effective solution.
