Memory
Supported memory clock speeds |
533, 667, 800 MHz |
ECC |
Y |
Number of DIMM slots |
16 |
Maximum internal memory |
128 GB |
Supported memory types |
DDR2-SDRAM |
Memory voltage |
1.8 V |
Internal I/O
ATX Power connector (24-pin) |
Y |
Power fan connector |
Y |
USB 2.0 connectors |
8 |
Number of SATA II connectors |
6 |
CPU fan connector |
Y |
Number of COM connectors |
2 |
Processor
Number of processors supported |
2 |
Processor manufacturer |
AMD |
Processor number of cores supported |
4 |
Graphics
On-board graphics adapter |
Y |
Expansion slots
PCI Express x16 (Gen 2.x) slots |
1 |
PCI Express x8 (Gen 2.x) slots |
2 |
Back panel I/O ports
PS/2 ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
COM ports quantity |
1 |
BIOS
ACPI version |
2.0 |
BIOS type |
AMI |
BIOS memory size |
4 MB |
Design
Component for |
Server |
Motherboard form factor |
Extended ATX |
Packaging content
Quick installation guide |
Y |
Storage controllers
Hard drive interface |
Serial ATA II |
Additionally
Chipset |
AMD SR5690 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
3 |

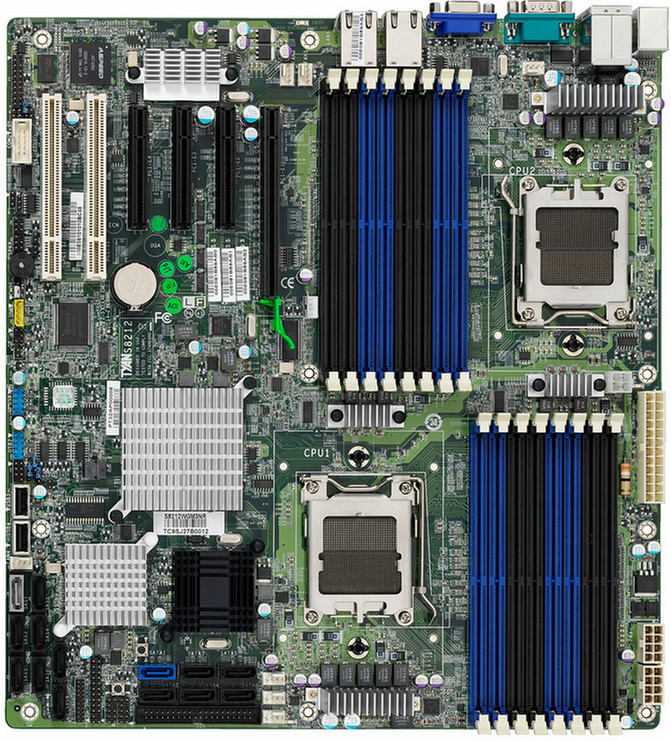

S8212, AMD SR5690+SP5100, 16x ECC DDR2 800/667/533, Dual AMD Opteron 2300/2400
