Back panel I/O ports
COM ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
IPMI LAN (RJ-45) port |
Y |
Processor
Lithography |
32 nm |
Processor manufacturer |
AMD |
Number of processors supported |
2 |
Thermal power |
105 W |
Processor number of cores supported |
8, 16, 12 |
Memory
Maximum RDIMM memory |
192 GB |
Maximum UDIMM memory |
48 GB |
Memory channels |
Octa |
Number of DIMM slots |
12 |
Maximum internal memory |
192 GB |
Supported memory types |
DDR3-SDRAM |
Memory voltage |
1.5, 1.35 V |
Internal I/O
Number of chassis fan connectors |
3 |
Chassis intrusion connector |
Y |
Integrated SAS ports |
1 |
USB 2.0 connectors |
2 |
Expansion slots
PCI Express x16 slots |
1 |
PCI Express slots version |
2.0 |
Performance
Motherboard southbridge |
AMD SP5100 |
Storage controllers
Hard drive interface |
Serial Attached SCSI (SAS) |
Packaging content
User guide |
Y |
Quick installation guide |
Y |
BIOS
BIOS type |
AMI |
BIOS memory size |
4 MB |
Additionally
Количество слотов PCI Express |
1 |
Chipset |
AMD SR5670 |
Ethernet LAN (RJ-45) ports quantity |
3 |
Ethernet LAN connection |
Y |
System bus data transfer rate |
6.4 GT/s |

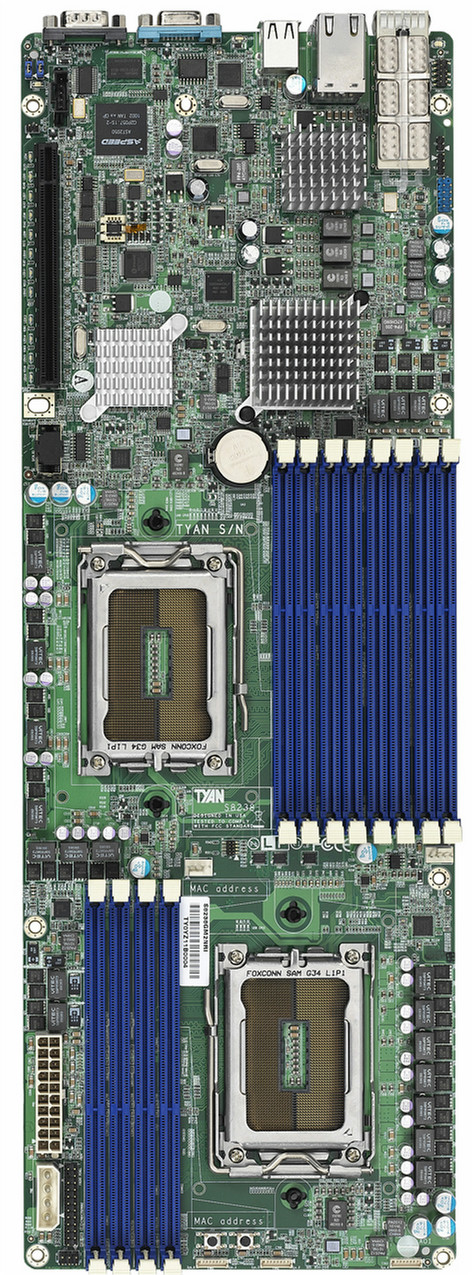

S8238, 2x G34, AMD SR5670 + SP5100, 12x DIMM, U/RDDR3 & LV RDDR3, 800/1066/1333MHz, Intel 82574L, RAID 0/1/10/5, USB 2.0, 3x RJ-45
- Supported CPU Series AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors (Magny-Cours) / HT3.0 support ; 12MB L3 per socket / AMD 32nm 8-Core/12-Core/16-Core Opteron 6200 Series Processors (Interlagos)
- Socket Type / Q'ty G34 / (2)
- Average CPU Power (ACP) wattage Up to 105W (G34)
- System Bus Up to 6.4 GT/s Hyper-Transport link support
- Chipset AMD SR5670 + SP5100
- Supported DIMM Qty (8)+(4) DIMM slots
- DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
- Capacity Up to 192GB RDIMM/ 48GB UDIMM
- Memory channel 4 Channels per CPU
- Memory voltage 1.5V or 1.35V
- PCI-E (1) PCI-E Gen.2 x16 slot
