Power
| Power over Ethernet (PoE) power per port |
30 W |
Networking
| Power over Ethernet (PoE) |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
3 |
2x 802.3af 16W - 1x 802.3at 30W

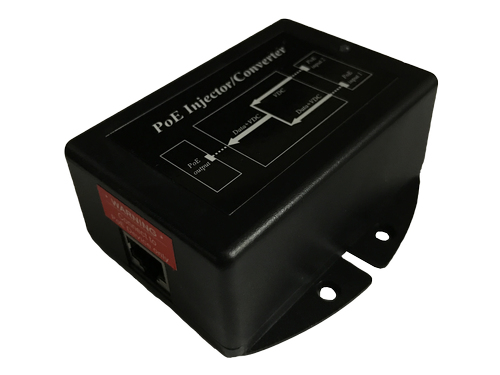

The POE-CONV-2AF-AT are unique Gigabit PoE converters which allow a customer to use existing PoE switches to provide PoE+ functionality. They work by combining two 802.3af ports into one 802.3at port.
There are two RJ45 sockets for input and one RJ45 socket for the output. One input accepts Data and Power, the second input accepts only Power. The design is isolated so input and output are isolated. The devices include protections for short circuit and overload.
