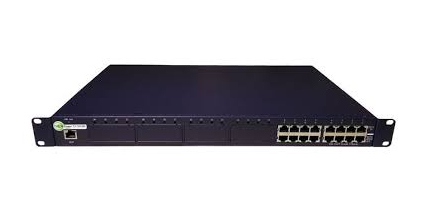

Tycon Systems TP-MS308 Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network switch

8 Port, POE, Gigabit Mid Span Injector, AC/DC input, US Power Cord Features
- IEEE 802.3af High Power Midspan POE Injectors
- Up to 16.8W per Individual Port
- 1U Standard Rack Mount (19” and 23”)
- Configuration and status thru front panel serial port
- Supports non standard 802.3af devices
- Accepts AC or DC input
- Remotely Power Multiple Equipment thru CAT5 Cable up to 100m

The TP-MS3xx series of rack mount mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations room. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3af compliant.

The included PC software allows for configuration of the individual ports and for displaying port status. Connecting to a PC is easy with the included RS232 cable. Ports can be configured for forced POE output (Passive POE) or IEE802.3af detection. POE DC Voltage (48V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per rack mount unit is 400W. The individual outputs are overload and short circuit protected.

The TP-MS308 has 8 POE ports. The TP-MS316 has 16 POE ports. The TP-MS324 has 24 POE ports. The devices are field upgradeable to add additional ports as the network grows.

The 1U rack mounting accommodates 19" or 23" racks with included brackets.
