Performance
| Channel bandwidth |
35 MHz |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| Auto Wireless Distribution System (WDS) |
Y |
| Networking standards |
IEEE 802.11a, IEEE 802.11n |
Packaging content
| Cables included |
AC |
| PoE adapter included |
Y |
| Quick start guide |
Y |
| Mounting kit |
Y |
Antenna
| Integrated antenna |
Y |
| Antenna gain level (max) |
27 dBi |
Power
| Input voltage |
24 V |
| Power over Ethernet (PoE) |
Y |
| Input current |
0.5 A |
Design
| Placement |
Pole |
| Internal |
N |
Security
| Security algorithms |
WEP, WPA, WPA2 |
Weight & dimensions
| Width |
610 mm |
| Height |
432 mm |
Additionally
| Colour of product |
White |
| Transfer rate (Mbps) |
150 Mbit/s |
| Packaging type |
Box |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
-30 - 75 °C |

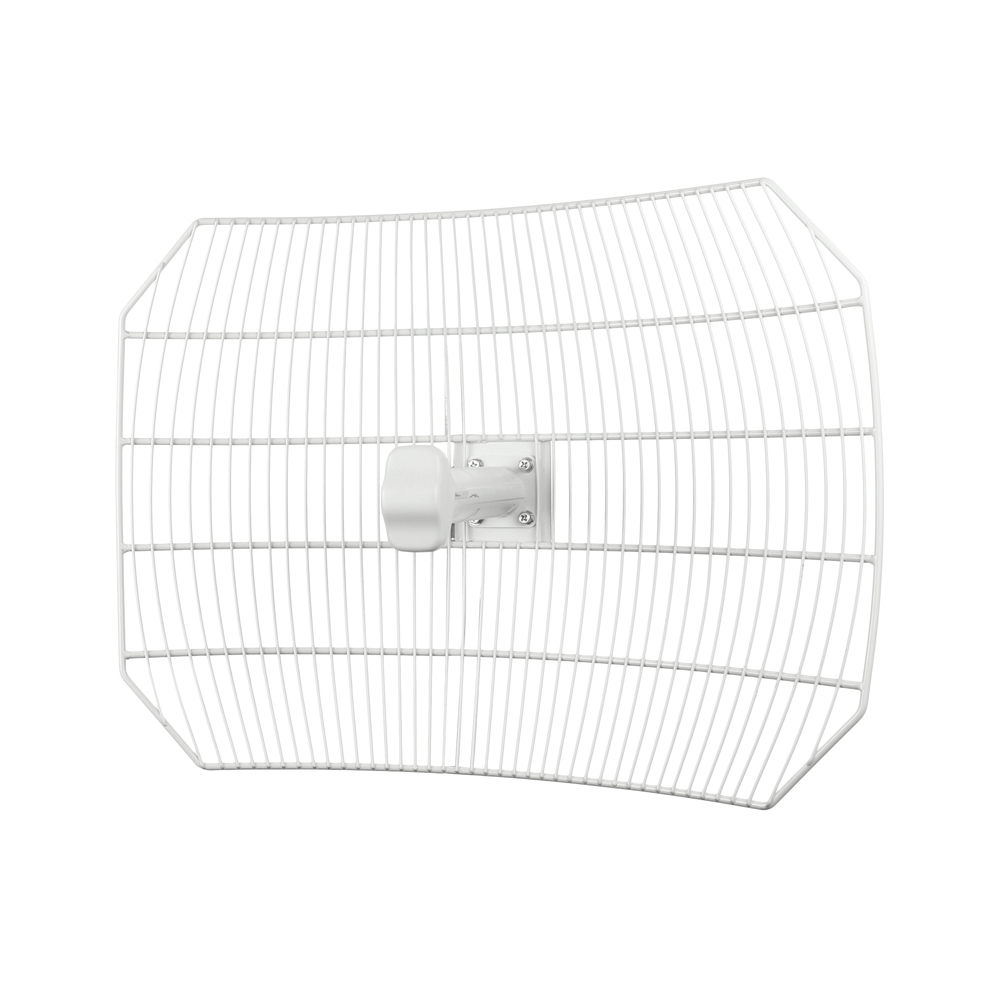

Ubiquiti Networks airGrid M5 HP V2. Data transfer rate (max): 150 Mbit/s, Networking standards: IEEE 802.11a,IEEE 802.11n, Channel bandwidth: 35 MHz. Security algorithms: WEP,WPA,WPA2. Antenna gain level (max): 27 dBi. Colour of product: White, Placement: Pole. Width: 610 mm, Height: 432 mm
