Performance
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Internal memory |
64 MB |
| Flash memory |
8 MB |
| 2.4 GHz |
Y |
| Maximum outdoor range |
50000 m |
| Frequency band |
2.412 - 2.462 GHz |
Antenna
| Antennas quantity |
2 |
| Detachable antenna(s) |
Y |
| Antenna connector type |
RP-SMA |
| Antenna type |
External |
Power
| Input current |
1 A |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
24 V |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
150 Mbit/s |
| Output power |
28dBm |
150Mb/s, 2.4GHz, 2 x 10/100Mbps LAN RJ-45, 32MB SDRAM, 8MB Flash, 2 x RP-SMA, PoE

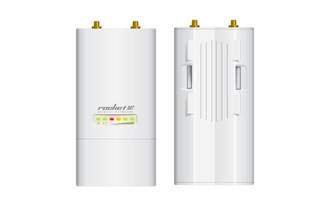

Ubiquiti Rocket M2, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP AirMax base-station applications.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
