Performance
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| 2.4 GHz |
Y |
| Maximum indoor range |
122 m |
| Reset button |
Y |
| 5 GHz |
Y |
Antenna
| Antennas quantity |
3 |
| Antenna gain level (max) |
6 dBi |
Power
| Power consumption (max) |
20 W |
| Input current |
0.5 A |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
48 V |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
1300 Mbit/s |
UAP-AC-EDU - Indoor, 2.4GHz/5GHz, 802.11 a/b/g/n/ac, 1x 10/100/1000, 802.3at PoE+
<b>Scalable Enterprise Wi-Fi Management</b>
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
<b>Save money and save time</b>
Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
<b>Powerful Hardware</b>
The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.
<b>Intuitive UniFi Controller Software</b>
Configure and manage your APs with the easy-to-learn user interface.
<b>Expandable</b>
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.

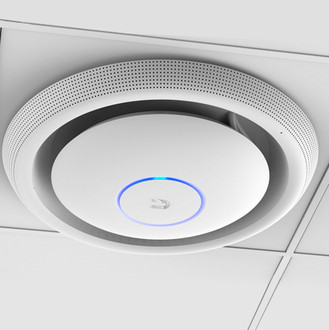

<b>UAP-AC-EDU</b>
The UniFi AC EDU AP conveniently integrates Wi-Fi and public address capabilities, making it ideal for
campus‑wide deployment. The UniFi AC EDU AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3at PoE+ compatibility. It will be available in single- and four-packs* starting in Q4.
Four- and five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.
