Performance
| Ethernet LAN data rates |
10, 100 Mbit/s |
| 2.4 GHz |
Y |
| Maximum indoor range |
25 m |
| Reset button |
Y |
| 5 GHz |
N |
| VLAN support |
Y |
Antenna
| Antennas quantity |
1 |
| Antenna gain level (max) |
1 dBi |
Design
| Internal |
N |
| Cable lock slot |
Y |
Power
| Power consumption (max) |
6 W |
| Power over Ethernet (PoE) |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Transfer rate (Mbps) |
150 Mbit/s |
UniFi UAP-IW - 2.4GHz, 802.11 b/g/n, PoE 802.3af, 3x 10/100 Ethernet
<b>Scalable and Unified Enterprise Wi-Fi Management</b>
The UniFi® Enterprise Wi-Fi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. UniFi AP (UAP) outdoor models have a form factor built to last outdoors.
The UniFi Enterprise Wi-Fi System includes the UniFi Controller software. The software installs on any PC,
Mac, or Linux machine within the network and is easily accessible through any standard web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.
<b>Save money and save time</b>
Unlike traditional enterprise Wi-Fi systems that utilize a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
<b>Powerful Hardware</b>
The UniFi Access Points feature Wi-Fi 802.11n MIMO technology for superior performance in the 2.4 and/or 5 GHz bands, and ranges up to 600 ft.
<b>Intuitive UniFi Controller Software</b>
Install, configure, and manage all of your UniFi APs with the intuitive and easy-to-learn UniFi Controller user interface.
<b>Expandable</b>
Unlimited scalability. Build wireless networks as big or small as needed. Start with one (or upgrade to a three-pack) and expand to thousands while maintaining a single unified management system.

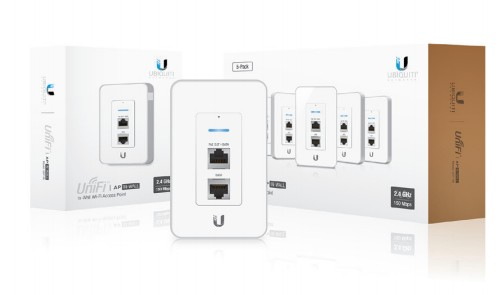

<b>UniFi AP In-Wall (UAP-IW)</b>
The UAP-IW is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone. The UAP-IW is capable of speeds of up to 150 Mbps with a range of up to 25 m (82 ft).
