Other features
| Full duplex |
Y |
| Mac compatibility |
N |
| Power over Ethernet (PoE) |
Y |
| Internet connection required |
Y |
| Wall mountable |
Y |
Display
| Display number of lines |
2 |
Additionally
| Wireless connections |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

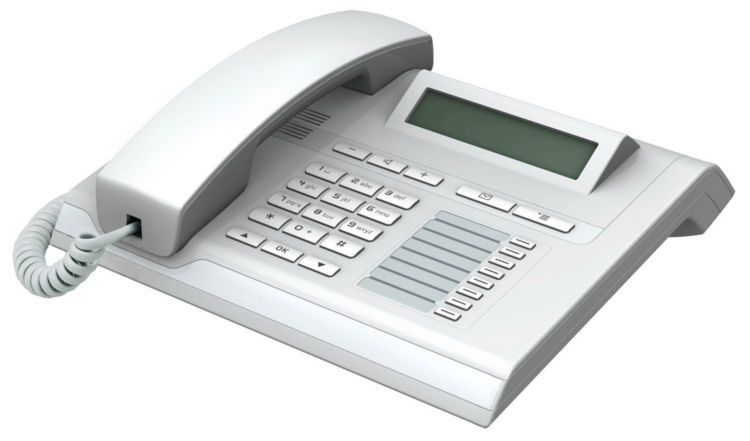

OpenStage 15, G.711, G.729AB, G.722, 2x LAN, PoE, ice blue
The phone OpenStage 15 is part of the OpenStage phone family. It can be used with SIP or HFA software.
Standards
- Supported Codecs:
- G.711
- G.729AB
- G.722 Wideband (7kHz)
- Standard based SIP support according to RFC 3261 (with SIP software)
- Full-duplex hands-free talking with high quality housing microphone and loudspeaker
- Computer Telephony Integration (CTI for HFA), Third party call control (for SIP)
Applications, Administration
- Remote administration:
- Web-based management
- HiPath Deployment Service
Connections
- 2 ports 10/100Base-T built-in Ethernet switch
- Power over Ethernet (PoE) according to IEEE 802.3af or external power supply (EU, US and UK power adapters)
- Sidecar module support for OpenStage Key Module 15
Housing, Control elements
- 3 navigation keys
- 8 free programmable keys (with paper labels)
- 3 fixed function keys for speaker, messages and menu with red LEDs
- Volume keys (Loudspeaker/+/-)
- Keypad with 12 keys
- not tiltable LCD 2 line display
- Various housing colors (ice blue, lava)
- Wall mountable
