Technical details
| Speakerphone |
Y |
| Keypad number of keys |
12 |
| Handset type |
Wired handset |
Phone features
| Full duplex |
Y |
| Lines quantity |
2 lines |
Packaging content
| Number of handles included |
1 pc(s) |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

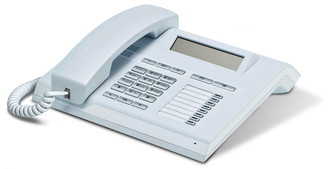

OpenStage 15 HFA, Fast Ethernet, PoE, Ice Blue
The phone OpenStage 15 is part of the OpenStage phone family. It can be used with
SIP or HFA software.
<b>Standards</b>
Supported Codecs:
- G.711.
- G.729AB.
- G.722.
- Standard based SIP support according to RFC 3261 (with SIP software).
- Full-duplex hands-free talking with high quality housing microphone and loudspeaker.
- Computer Telephony Integration (CTI for HFA), Third party call control (for SIP).
<b>Applications, Administration</b>
Remote administration:
- Web-based management.
- HiPath Deployment Service.
<b>Connections</b>
- 2 ports 10/100Base-T built-in Ethernet switch.
- Power over Ethernet (PoE) according to IEEE 802.3af or external power supply (EU, US and UK power adapters).
- Sidecar module support for OpenStage Key Module 15.
<b>Housing, Control elements</b>
- 3 navigation keys.
- 8 free programmable keys (with paper labels).
- 3 fixed function keys for speaker, messages and menu with red LEDs.
- Volume keys (Loudspeaker/+/-).
- Keypad with 12 keys.
- not tiltable LCD 2 line display.
- Various housing colors (ice blue, lava).
- Wall mountable.
