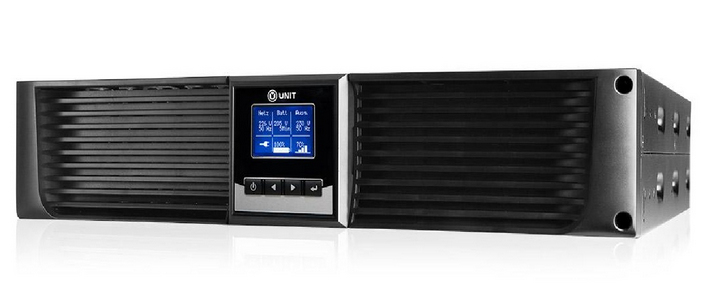

Unit Black 6000 Double-conversion (Online) 6000VA 6AC outlet(s) Rackmount/Tower Black uninterruptible power supply (UPS)

Unit Black 6000 Double-conversion (Online) 6000VA 6AC outlet(s) Rackmount/Tower Black uninterruptible power supply (UPS)

MPN: UD6000CB-IRT
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Design

Rack capacity 3U
Form factor Rackmount/Tower
Display LCD

Power

Input operation voltage (max) 276 V
Input operation voltage (min) 120 V
Power supply input frequency 45/66 Hz
Output power capacity 6000 VA
Output operation voltage (min) 208 V
Output operation voltage (max) 240 V
Output voltage regulation 1%
Output frequency regulation 0.2 Hz
Output power 5400 W

Ports & interfaces

AC outlet types C13 coupler, C19 coupler
USB 2.0 ports quantity 1
AC outlets quantity 6 AC outlet(s)
Emergency Power Off (EPO) connector Y

Packaging content

Bracket Y
Quick installation guide Y
Cables included Serial

Operational conditions

Operating relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -10 - 65 °C

Weight & dimensions

Depth 594 mm
Weight 46000 g
Width 438 mm
Height 129 mm

Performance

LED indicators Y
Noise level 55 dB
Audible alarm(s) Y
UPS topology Double-conversion (Online)

Battery

Hot-swap battery Y
Battery recharge time 3 h
Battery voltage 12 V
Typical backup time at half load 12 min
Typical backup time at full load 5 min
Number of batteries supported 15
Battery capacity 5 Ah

Other features

I/O ports DB9

Additionally

Colour of product Black
RS-232 port 1
Operating temperature range (T-T) 0 - 40 °C
Unit Black 6000. Output power capacity: 6000 VA, Output power: 5400 W, Input operation voltage (min): 120 V. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 6 AC outlet(s). Battery recharge time: 3 h, Typical backup time at half load: 12 min, Typical backup time at full load: 5 min. Form factor: Rackmount/Tower, Colour of product: Black, Rack capacity: 3U. UPS topology: Double-conversion (Online), Noise level: 55 dB
