Power
| Input voltage |
5 V |
| Power consumption |
400 mA |
| Power source type |
DC |
| Charging time |
4 h |
| Battery life |
10 h |
Scanning
| Tilt reading angle |
-60 - 60 ° |
| Pitch reading angle |
-60 - 60 ° |
| Working distance |
791 mm |
| Sensor type |
CMOS |
Ports & interfaces
| Interface |
USB |
| Operating frequency |
2400 MHz |
| Wireless range |
10 m |
| USB version |
2.0 |
Additionally
| Wireless technologies |
Wired |
| Battery performance |
1620 mAh |
MS842P Wireless 2D Imager Scanner, USB
Delivering efficiency, durability and compact size, the device combines superior 1D and 2D barcode scanning with the freedom of wireless technology. The well integrated mobility design allows users to move around without being restricted, while supporting high comfort over long periods of operation. MS842P is a friendly device for a broad variety of markets and applications.
Mobility and Reliability
While sustaining a 1.8 meter drop to concrete, MS842P incorporated with IP42 rugged design for protection against dust and moisture. In additions to offer a 10M operation range via its USB dongle, the simple plug-and-play design of MS842P makes the installation much easier without complicated set-up. Moreover, the built-in long life trigger of 10 million times guarantees a continuous productivity for
best reliability. In addition to all of those benefits, the MS842P helps to store data in a buffer mode while it is out of range of the wireless signal, and also upload the data when it gets back in range.
Improve Efficiency and Productivity

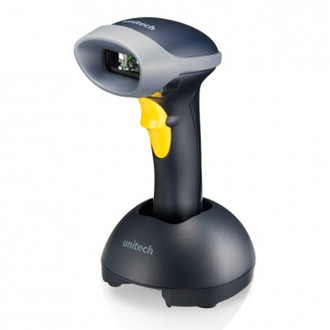

Beyond its versatility, the desktop charging cradle is provided to store and recharge the scanner, as well as to check the charging status by the power LED indicators. Featuring high speed decoder and high performance engine, MS842P is a great tool to improve productivity at the point of sale, industrial shipment management and inventory management. There is no doubt that MS842P is one of the most efficient wireless scanning solutions in its class.
Features
- Mobility wireless design with 10M operation range.
- Built in high performance 2D engine & decoder.
- Durable, Compact and Long life trigger design
- Rugged design by IP42 and 1.8m drops
- Buffer mode for out-of-range reading
