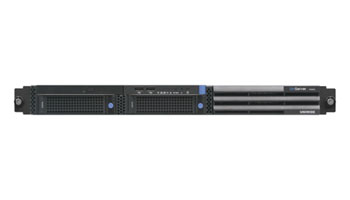

Uniwide UniServer 1522ES AMD 8132 Socket F (1207) 1U Black

1U 2-way socket F AMD Opteron SAS Server, 16 DDR-2 DIMMs, 1 x 64/133 PCI-X, 1 x PCI-E(x16), 2 x Gigabit & 1 x 10/100, VGA 16MB, 2 x hot swap SAS HDDs UniServer is a complete line of AMD Validated Server platforms that supports the latest AMD Opteron™ processor for Socket F (1207). With an addition of this new product family, UniServer continues to push the envelope in performance, reliability, value and scalability in the AMD Opteron™ server market space.
UniServer supports either dual or quad AMD Opteron™ processor for Socket F (1207). With its innovative direct access to the memory space and power now technology, AMD Opteron™ processor for Socket F (1207) offers the highest performance per watt. In addition to the industry’s fastest performing processor, UniServer incorporates up to 128GB of DDR2 system memory, doubling the conventional server platforms available in the market..

Processing and doubled memory space is coupled with long list of built-in features such as PCI-E and PCI-X add-on slots, RAID 0, 1, 1E for SATA II or SAS (both delivering 3.0Gbps), hot swap power supplies, fans, hard disk drives, and built-in service processor for IPMI 2.0 based in-band & out-of-band server management. .

Lastly, UniServer continues to offer the very best in the market as the most innovative, easy to integrate and deploy, and finally, easy to maintain. From the design stage, UniServer was destined to be superior in its fit & finish and workmanship. All of the major components, motherboard, power supply, I/O boards, chassis design, cooling fan placements… were designed to fit as an integral part of a highly efficient server system. As a result of this design effort, integration and deployment time of a UniServer is substantially less. Sustaining the same integration quality on every server unit is another benefit of this design effort. By unifying the base motherboard across its entire product line keeps the maintenance and TCO lower than any competing platform in the market. .

<b>Performance</b>
UniServer achieves highest processing power with the new AMD Opteron™ processor for Socket F (1207) family, all dual core, and eight DDR2 DIMM sockets per processor. UniServer is the industry leader in offering the highest memory capacity in 2 way and 4 way processor server configurations.

<b>Scalability </b>
Eight DDR2 DIMM sockets per CPU, gives UniServer users an easy upgrade path to higher memory capacity as performance demands increase. In addition, 4 way configurations support 2 way configuration thus allowing the user to upgrade to 4 way configuration at a later date. Up to 6 SATA II or SAS drives supports up to 3.0TB of raw storage capacity. 3 x PCI-E and 3 x PCI-X slots within a single 3U, 4 way, server is one of the highest density configuration in the market.

<b>Availability</b>
UniServer is equipped with many features to maximize its up-time. Hot swap HDD, PSU, and fans do not require system shutdown for replacement. Built-in RAID 0, 1, 0+1 on SATA II or SAS drives ensure continuous disk I/O. Dual Gigabit NIC ports on PCI-E bus can be aggregated for NIC fail-over and twice the throughput.

<b>Manageability</b>
Server Dome, Uniwide’s own IPMI 2.0 based server managed suite can manage single or multiple UniServers at remote sites. Dedicated BMC service processor built-into every UniServer allows in-band and out-of-band server control, including hard and soft server reset, power up and shutdown. Server Dome is a full-featured management suite, that is Java based, thus, it is host independent. Furthermore, it’s monitoring capabilities include temperature, fan, voltage and system health monitoring, OS level alerts and system monitoring, disk I/O, network I/O, memory usage, event logging, resource utilization… the list goes on and on.

<b>Reliability</b>
With thousands of first generation UniServers deployed through-out the global market, UniServer lives up to its reputation as one of the most reliable AMD Validated Server platform in the market. The result of innovative design, where each component was carefully designed to fit together, is a first class fit and finish that operates extremely cool and quiet.

<b>Value</b>
UniServer delivers high value by cutting down time on testing, validation, integration, deployment, management and maintenance. No other server platform offers quick and easy of ownership and control. Furthermore, eight DDR2 DIMM sockets per CPU allow users to use lower capacity memory modules while achieving same capacity, saving substantially on cost of memory.

<b>Standard Features:</b>
- 2 way, AMD Opteron™ processor for socket F (1207) support
- 8 DDR2 DIMM sockets per CPU, total 16 DIMM sockets, up to 64GB of system memory
- 1 PCI-E and 1 PCI-X expansion slots, Riser cards included
- Up to Two hot swap SATA II or SAS drive support
- On-board RAID 0, 1 SATA II or SAS drives
- Single 500W power supplies
- Dedicated BMC service processor for Server Dome.
- Server Dome, Java based server management suite
- Hot pluggable cooling fans
- Cable-less and tool-less design
- EIA, 19” rack mount standard
- CPU heat sinks and air plenum
- Slide rails

<b>Optional Features:</b>
- Slim CD/DVD Combo or DVD RW kit
- Slim FDD kit
- KVM over IP module
