Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
2 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Number of processors installed |
4 |
| Expansion slots |
1x PCI-E(x4)\n2x PCI-E(x16)\n3x 64/133 PCI-X |
Graphics
| Maximum graphics adapter memory |
16 MB |
Storage
| Number of storage drives supported |
8 |
Memory
| Maximum internal memory |
128 GB |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |

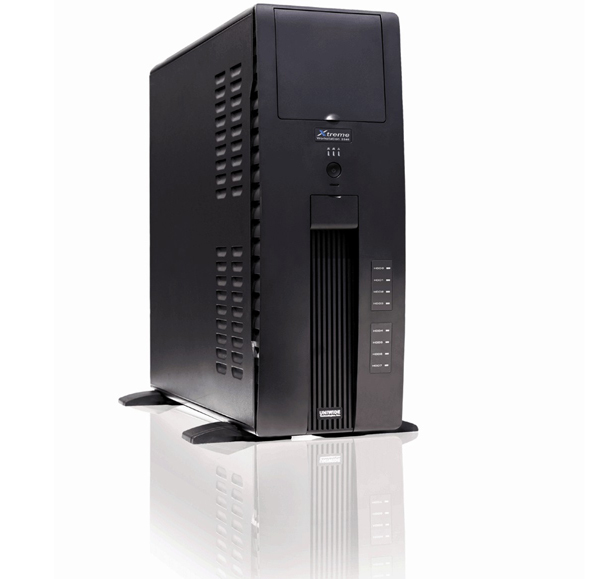

UniWorkstation 5548ES - 4-way, Dual-core AMD Opteron Socket F SAS Workstation, AMD 8132, NVIDIA nForce4 Professional 2200 / 2050, 32 x DIMMs, 2 x PCI-E(x16, support SLI function), 1 x PCI-E(x4), 3 x 64/133 PCI-X, 2 x Gigabit, 8 x Hot-swap SAS HDD, Redundant or Single PS
For the most demanding processing and graphics intensive applications, UniWorkstation platform will meet and surpass expectations.
Often times, workstations are integrated using combination of desktop and server components, thus, excelling in certain area of computing but lack in other. UniWorkstation is a tightly integrated, full-featured platform that can excel in all aspects of performance requirements of a powerful workstation.
The key objective for UniWorkstation is to overcome the major areas that are often bottleneck. UniWorkstation starts the latest AMD Opteron™ processor for Socket F (1207) supported, AMD Opteron™ main board. When additional processing power is needed, 2-way can be scaled to 4-way configuration by plugging in a CPU & Memory board. In addition, 8 DDR2 667MHz DIMM sockets are supported per CPU. This first-in-industry feature increases the performance/value mix by reducing the cost of system memory by up to 100% over competition.
In line with extreme processing and data buffering capability, UniWorkstation has built-in SATA with RAID 0, 1, 1E, maximizing on disk I/O with striping data across multiple disks. For those preferring SCSI devices, SAS channel with RAID option is available. Data transfer is optimized with on-board dual PCI-Express Gigabit Ethernet ports.
