Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11g |
| Wi-Fi standards |
IEEE 802.11g, IEEE 802.11b |
| Maximum outdoor range |
300 m |
| Maximum indoor range |
100 m |
| Modulation |
ROBO, DQPSK, DBPSK, 64-QAM, 256-QAM, 16-QAM |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Antenna
| Antenna type |
External |
| Antennas quantity |
1 |
| Detachable antenna(s) |
N |
| Antenna gain level (max) |
2 dBi |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| xDSL connection |
Y |
| Frequency range |
2.4 - 2.497 GHz |
| Input current |
1 A |
| Data transfer rate |
200 Mbit/s |
| Supported protocols |
PPPoE & PPPoA, HTTP, TСP/IP & UDP, PAP & CHAP, DDNS |
| Rack mounting |
N |
| Mobile network connection |
N |
| Supported WAN type |
G.dmt (G.992.1), Annex A\nG.lite (G.992.2) / T1.413, Annex A\nITU G.992.3, Annex A ADSL2, ITU G.992.5 Annex A ADSL2+ |
| Upstream data rate |
1 Mbit/s |
| Downstream data rate |
24 Mbit/s |
Software
| Mac operating systems supported |
Y |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| DMZ support |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Security
| MAC address filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
| NAT functionality |
NAT/NAPT |
| VPN support |
PPTP, IPSec, L2TP |
| Firewall security |
NAT, SPI |
Networking
| Management protocols |
Telnet |
| Routing protocols |
RIP-2, RIP-1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |

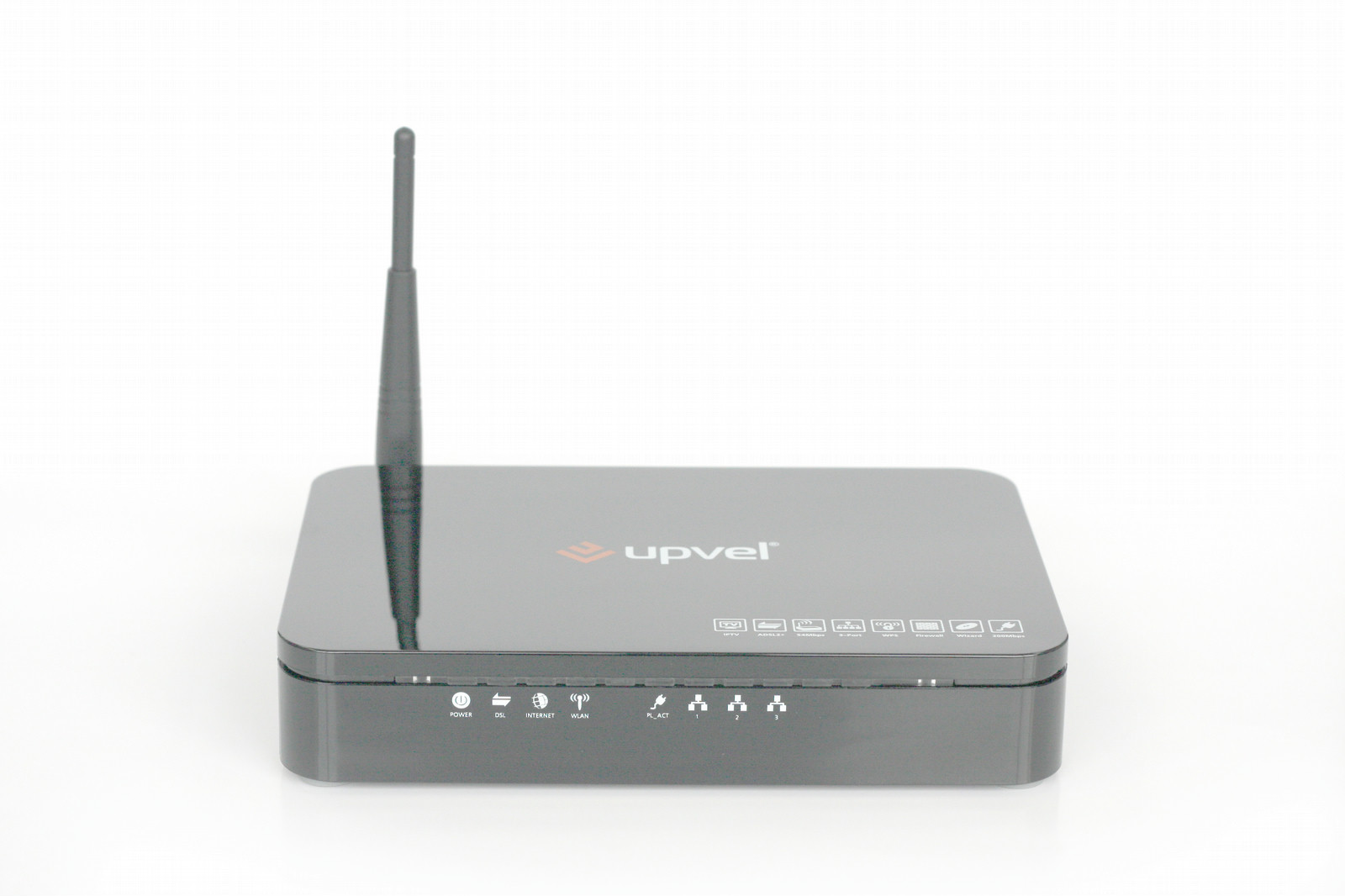

UPVEL UR-203AWP. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: IEEE 802.11g, Wi-Fi standards: IEEE 802.11b, IEEE 802.11g. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u, Routing protocols: RIP-1, RIP-2, Management protocols: Telnet. Antenna type: External, Antenna gain level (max): 2 dBi. Security algorithms: 128-bit WEP, 64-bit WEP, DES, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP, Firewall security: NAT, SPI, NAT functionality: NAT/NAPT
