Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| WLAN data transfer rate (max) |
150 Mbit/s |
Antenna
| Antenna type |
External |
| Antennas quantity |
1 |
| Detachable antenna(s) |
N |
| Antenna gain level (max) |
5 dBi |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| xDSL connection |
N |
| Frequency range |
2.4 - 2.4385 GHz |
| Mobile network connection |
N |
Software
| Mac operating systems supported |
Y |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| DMZ support |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Security
| MAC address filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
| Firewall security |
NAT, SPI, DoS Prevention |
Power
| Power over Ethernet (PoE) |
N |
Networking
| Management protocols |
HTTP |
| Receiver sensitivity |
802.11b: -85dBm @ 11 Mb/s\n\n802.11g: -68dBm @ 54 Mb/s\n\n802.11n: -62dBm @ 150 Mb/s |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |

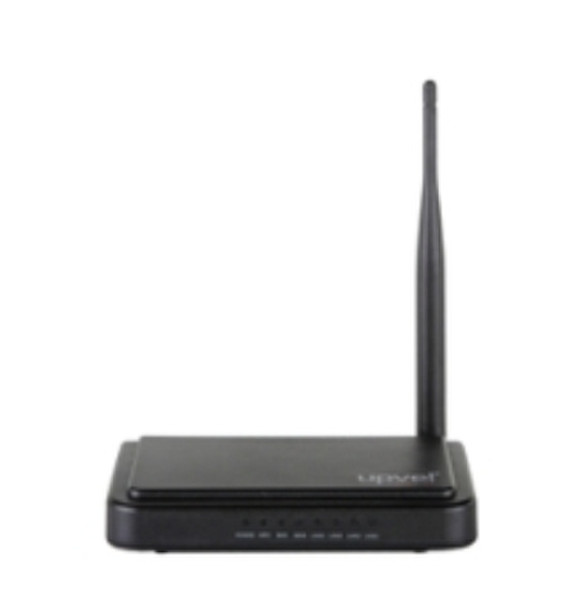

UPVEL UR-309BN. Top Wi-Fi standard: IEEE 802.11n, WLAN data transfer rate (max): 150 Mbit/s, Wi-Fi standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, Receiver sensitivity: 802.11b: -85dBm @ 11 Mb/s 802.11g: -68dBm @ 54 Mb/s 802.11n: -62dBm @ 150 Mb/s, Management protocols: HTTP. Antenna type: External, Antenna gain level (max): 5 dBi. Security algorithms: WPA2-RADIUS, 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS, Firewall security: NAT, SPI, DoS Prevention
