Antenna
| Detachable antenna(s) |
N |
| Antenna type |
External |
| Antennas quantity |
1 |
| Antenna gain level (max) |
2 dBi |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Maximum outdoor range |
300 m |
| Maximum indoor range |
100 m |
| Modulation |
OFDM, DSSS, DQPSK, DBPSK, CCK, 64-QAM |
| WLAN data transfer rate (max) |
150 Mbit/s |
Other features
| USB ports quantity |
1 |
| xDSL connection |
Y |
| Frequency range |
2.4 - 2.497 GHz |
| Input current |
1 A |
| Supported protocols |
PPPoE & PPPoA, HTTP, TСP/IP & UDP, PAP & CHAP, DDNS |
| Rack mounting |
N |
| Mobile network connection |
Y |
| Supported WAN type |
ADSL:\nAnnex A, I, J, L, M\nG.dmt (G.992.1), Annex A\nG.lite (G.992.2), T1.413, Annex A\nITU G.992.3, Annex A ADSL2, ITU G.992.5 Annex A ADSL2+\n\nEthernet:\nLAN1 |
| Upstream data rate |
1 Mbit/s |
| Downstream data rate |
24 Mbit/s |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Software
| Mac operating systems supported |
Y |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
IPv6 |
| DMZ support |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Security
| MAC address filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
| System event log |
Y |
| NAT functionality |
NAT/NAPT |
| VPN support |
PPTP, IPSec, L2TP |
| Firewall security |
NAT, SPI, DoS Prevention |
Power
| Power over Ethernet (PoE) |
N |
Networking
| Management protocols |
SNMP, Telnet |
| Routing protocols |
RIP-2, RIP-1 |
| Receiver sensitivity |
11 Mb/s @ -82 dBm\n54 Mb/s @ -72 dBm\n150 Mb/s @ -80 dBm |
Additionally
| On/Off switch |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

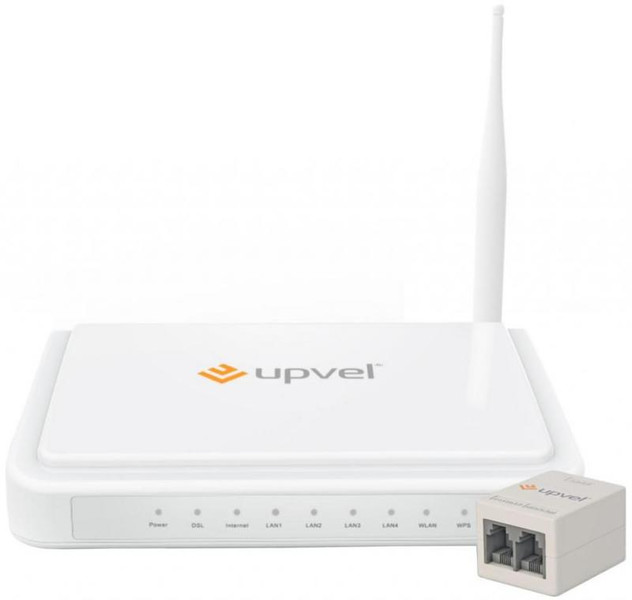

UPVEL UR-344AN4G. Top Wi-Fi standard: IEEE 802.11n, WLAN data transfer rate (max): 150 Mbit/s, Wi-Fi standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). 4G standards: LTE. Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, Receiver sensitivity: 11 Mb/s @ -82 dBm 54 Mb/s @ -72 dBm 150 Mb/s @ -80 dBm, Routing protocols: RIP-1, RIP-2. Supported network protocols: IPv6
