Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
SPI |
| VPN support |
IPSec, PPTP, L2TP |
| System event log |
Y |
| MAC address filtering |
Y |
Other features
| Supported data transfer rates |
10/100 Mbps |
| Maximum data transfer rate |
0.125 Gbit/s |
| Electromagnetic emissions |
FCC Class B, CE Class B |
| xDSL connection |
N |
| Number of users |
253 user(s) |
| USB ports quantity |
1 |
| Frequency range |
2400-2483.5 MHz (ETSI) |
Management features
| Universal Plug and Play (UPnP) |
Y |
Certificates
| Safety |
UL, CUL, CE Class B |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RP-SMA |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
DNS, PPPoE, PPTP, DMZ host |
Wireless LAN features
| Channels quantity |
13 channels |
Additionally
| Output power |
19.5 dBm EIRP |
| Ethernet LAN (RJ-45) ports quantity |
4 |

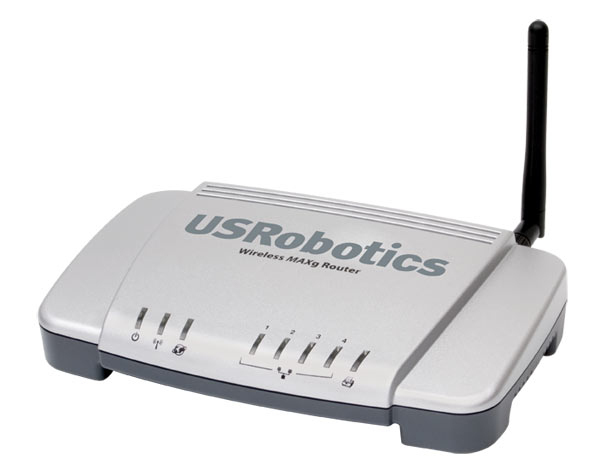

802.11g Wireless MAXg Router
The USRobotics Wireless MAXg Router provides the latest 802.11g technology, delivering optimal wireless connections to your PCs, laptops, and other wireless devices. The router also provides the maximum speed – up to 125 Mbps – delivering large files like MP3s, digital photos, and digital video through your network fast and efficiently. And with the router, your network will be protected with a suite of security capabilities, including Wi-Fi Protected Setup™ (WPS), Stateful Packet Inspection firewall for protection from network intrusions, Wi-Fi Protected Access (WPA and WPA2), WPA2/802.11i, TKIP and AES Encryption, MAC address authentication, and more.
In addition to providing state-of-the-art wireless connectivity, your router includes an integrated print server, allowing you to share your USB printer with other computers on your network and a 4-Port Ethernet switch for connecting additional Ethernet devices.
• MAXg Technology for up to 125 Mbps performance.
• SureStart installation wizard.
• Support for Universal Plug and Play (UPnP).
• Supports up to 253 users (with additional hubs/switches).
• DHCP server (LAN) and client (WAN).
• Static and Dynamic IP addressing.
• PPP over Ethernet (PPPoE) and PPTP support.
• DMZ host support.
