Other features
| Connectivity LEDs |
Y |
| Management platform |
802.1Q VLAN |
Networking
| Port mirroring |
Y |
| Flow control support |
Y |
| IP routing |
Y |
| Full duplex |
Y |
Data transmission
| Maximum data transfer rate |
8.8 Gbit/s |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Gigabit Ethernet (copper) ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |

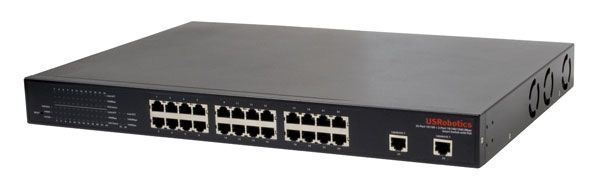

24-Port PoE Smart Switch - Power Ethernet devices without adding electrical outlets
The latest addition to the USRobotics Courier business solutions line, the 24-Port PoE Smart Switch, provides data connectivity and DC power to Ethernet devices in difficult to reach locations. Designed with flexibility and expandability in mind, it supports variable power settings up to 15.4W on the 24 10/100 Mbps ports (maximum total 170W), and has two Gigabit ports (for uplinks and extending networking range). Simple to use web-based management makes this an ideal solution for small and medium businesses.
DC Power Where You Need It
-Save money by delivering DC power via Ethernet cabling.
-Support for PoE priority settings so that high priority devices (eg. IP Phones) stay powered in case of unexpected power drain allowing low priority devices to be powered off if necessary.
-Includes both over current and circuit sorting protection.
Solid Manageability
-Easy Web-based configuration from a Web browser anywhere on the network.
-Support for 802.1q VLAN (port- and tag-based).
-Quality of Service (QoS).
-Port mirroring.
-Specific port configurations (speed, duplex mode, and device flow control).
-Includes additional configuration and management utility (Windows 2000/XP compatible).
Flexible Ethernet Connectivity
-Supports Ethernet connections at speeds of 10/100 Mbps on 24 PoE ports and 10/100/1000 Mbps on 2 Gigabit ports.
-Auto-Speed Detection - each port automatically detects, and matches the speed of connected Ethernet devices.
-Auto-Switching eliminates the need for cross-over cables.
Simple, Reliable Design
-Metal case and efficient design enhance reliability.
-Visual diagnostic LEDs.
-Standard 19 inch rack-mount form factor.
Non-Blocking
Overall throughput matches the total capacity of the switch ports (8.8 Gbps).
