Networking
| Cabling technology |
10/100/1000BaseT(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
Packaging content
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Y |
Performance
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
Power
| Input voltage |
5 V |
| Input current |
12 A |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 95% |
Ports & interfaces
| Internal |
N |
| Host interface |
USB |
| Interface |
Ethernet |
| USB ports quantity |
2 |
| Connector(s) |
USB 2.0, RJ-45 |
Other features
| Minimum system requirements |
TCP/IP Network\n4 GB HDD FAT32/ NTFS/ FAT64\n |
| Power LED |
Y |
| Compatible operating systems |
Windows 7 64 bit, Win 7, Vista 64 bit, Vista, XP 64 bit SP3, XP SP3\nMac OS X 10.5.4 +\nLinux\nUnix (Samba)\n |
Weight & dimensions
| Depth |
54.6 mm |
| Weight |
81.65 g |
| Width |
82.55 mm |
| Height |
24.1 mm |
| Package depth |
146.1 mm |
| Package weight |
317.51 g |
| Package width |
241.3 mm |
| Package height |
76.2 mm |
Certificates
| RoHS compliance |
Y |
| Certification |
FCC Part 15 Class B\nCE Class B |
Additionally
| Colour of product |
Black |
| Transfer rate (Mbps) |
1000 Mbit/s |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 35 °C |

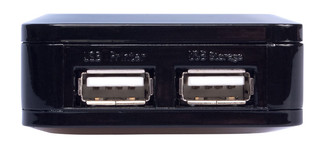

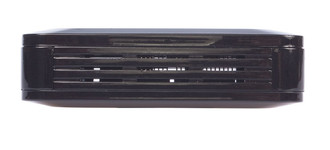

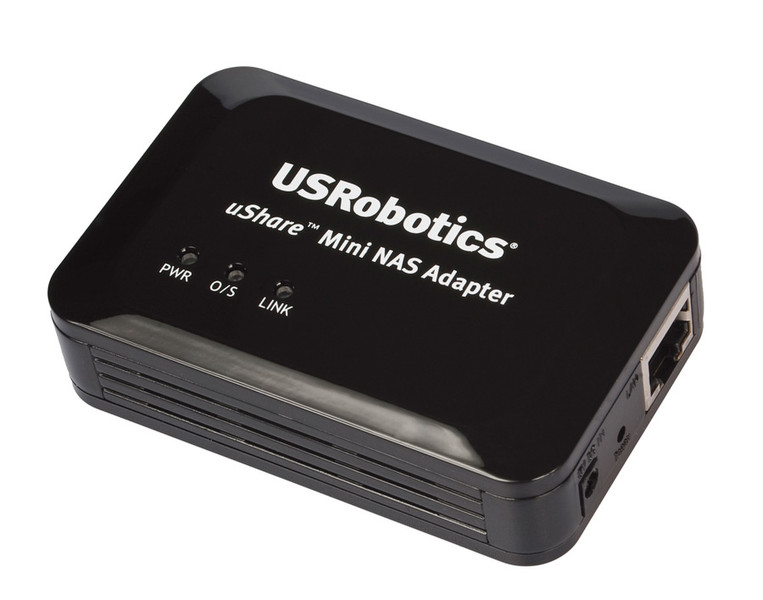

Mini NAS Adapter, 2 x USB 2.0, 1 x RJ-45, Gigabit Ethernet
The USRobotics uShare Mini NAS Adapter easily turns your USB hard drive into shared storage on your local network and so much more. Simply connect an external USB Hard Drive or USB Flash Drive to the NAS Adapter and within a few clicks share files with anyone on your local network, stream music or videos on your Xbox 360/PS3, share a printer over the network, or set up a Bit Torrent download session. With just an Internet connection, the NAS adapter allows easy remote access to the files on the attached hard drive from anywhere - no need to carry extra drives. Great compatibility means that users on different systems can easily share files - Windows, Mac and Linux. Reduce the clutter and save space - the NAS Adapter is one of the smallest NAS products available.
