Networking
| Supports ISDN connection |
N |
| Management protocols |
PPPoE, PPTP |
Security
| Firewall security |
SPI |
| Authentication method |
802.1x |
| VPN support |
IPSec, PPTP, L2TP |
| MAC address filtering |
Y |
Other features
| Maximum data transfer rate |
0.125 Gbit/s |
| Electromagnetic emissions |
FCC Class B, CE Class B |
| xDSL connection |
Y |
| Bandwidth |
2.4 GHz |
| Networking features |
Ethernet LAN, WLAN |
| Number of users |
253 user(s) |
| Frequency range |
2400 - 2483.5 MHz |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RP-SMA |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
TCP/IP, UPnP |
Wireless LAN features
| Channels quantity |
13 channels |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
5 |

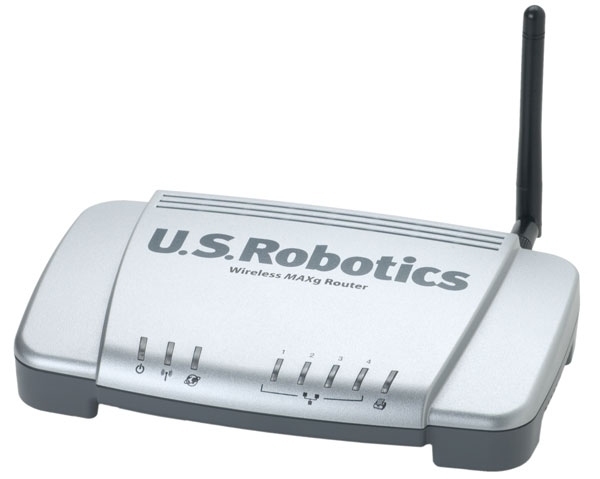

125 Mbps Wireless MAXg Access Point & Router with USB Print Server
The U.S. Robotics Wireless MAXg Router provides the simplest installation process anywhere, while delivering the performance you have come to expect from U.S. Robotics. Featuring exclusive MAXg™ Technology, this router delivers a 50% range improvement over standard 802.11g — for total home/small business coverage while providing a MAXimum performance of 125 Mbps.
MAXg Technology
- MAXimum Range – 50% greater than standard 802.11g.
- MAXimum Speed – 125 Mbps performance.
- MAXimum Security – industry leading security protects your network.from hackers and unauthorized access from the Internet and from wireless interlopers.
Complete Suite of Security Measures
- Wi-Fi Protected Access (WPA) and WPA2/802.11i.
- 802.1x Authentication.
- 64/128-bit WEP encryption.
- Stateful Packet Inspection (SPI) firewall to prevent network .intrusions.
- Support for VPN pass through (PPTP, IPSec and L2TP).
- MAC address authentication and SSID disable.
MAXimum simplicity
In one seamless operation the SureStart installation wizard helps you easily install the MAXg PC Card, PCI or USB Adapter and your U.S. Robotics MAXg Router, validates your wireless connection and makes your security set up nearly effortless.
Share USB Printers
Integrated print server turns any USB printer into a network printer which can be shared among all network users.
Excellent Compatibility
Complete compatibility with standard 802.11b, 802.11g and accelerated wireless technologies.
