Security
| VPN support |
VPN Traversal (Pass-through IPSec, PPTP, L2TP) |
| Firewall security |
Y |
Technical details
| DSL specification |
ITU-T G.992.3, ITU-T G.992.5, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1 |
| Full duplex |
Y |
| Interface |
USB, Ethernet, ADSL, Wi-Fi |
| Security features |
DoS\nIP Filtering\nSyslog\nSPI\nPassword protected\nParental Control |
| Antenna type |
Swivel dipole |
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
SMA |
| Electromagnetic compatibility |
FCC Class B, CE Class B |
| Compliance industry standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.1x |
| Channels quantity |
13 channels |
Certificates
| Safety |
UL, CUL, CE Class B |
Protocols
| Supported protocols |
RFC 2516 PPP\nRFC 2364 PPP\nRFC 2684 |
Networking
| Networking features |
Ethernet LAN, Wireless LAN, ADSL |
| Frequency band |
2.4 - 2.4835 GHz |

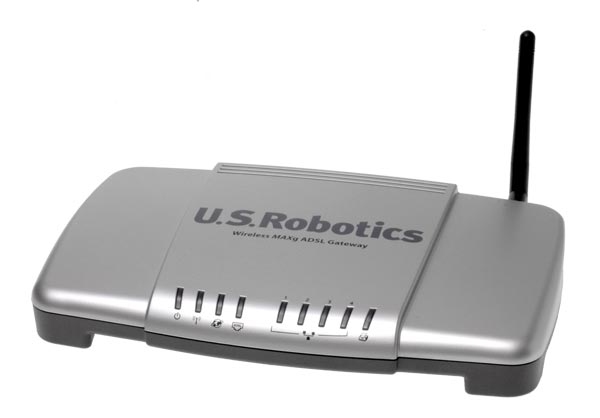

Wireless MAXg ADSL2+ Gateway Annex A
Securely share your ADSL Internet connection and USB printer, over wireless or Ethernet connections, with the USRobotics Wireless MAXg™ ADSL2+ Gateway. This powerful multi-function device integrates the latest ADSL and MAXg wireless technologies for a complete home or small business broadband network. MAXg technology delivers a 50% range improvement over standard 802.11g and provides wireless speeds of up to 125 Mbps, while support for ADSL2+ assures you optimal ADSL speeds up to 24 Mbps. A full complement of security capabilities and an integrated USB print server provide for confident, flexible and high-performance wireless broadband networking.
Five products in one
ADSL2+ Modem, MAXg Access Point, 4-Port Router, Firewall and USB Print Server.
Integrated Print Server Annex A
Integrated print server turns a supported USB printer into a network printer which can be shared among all network users.
Support for Virtual Private Networks
- Establish secure connections over the Internet for access to corporate network resources (i.e. servers, databases, email, etc.).
- Support for Virtual Private Networks (VPN) pass-through (PPTP, IPSec and L2TP).
- Upgradable to support VPN (IPSec) termination.
MAXg Technology
- MAXimum Range – 50% greater than standard 802.11g
- MAXimum Speed – 125 Mbps performance.
- MAXimum Security – Industry leading security protects your network from hackers and unauthorized access from the Internet and from wireless interlopers.
- MAXimum Simplicity.
Advanced ADSL Technology
- Support for the latest ADSL standards including ADSL2 and ADSL2+, for advanced speeds.
- ATM QoS support for high quality Video over DSL (Bind ATM traffic to any Ethernet port).
Complete Suite of Security Measures
- Advanced firewall (Stateful Packet Inspection & Denial of Service).
- Wi-Fi Protected Access 2 (WPA2)/802.11i, Wi-Fi Protected Access (WPA) and 802.1x Authentication.
- 64/128-bit WEP encryption.
Industry Compatibility
- Meets or exceeds key industry standards for performance and compatibility. Supports TR-48, UR-2, and other performance standards for DSLAM interoperability.
- Complete compatibility with standard 802.11b, 802.11g and accelerated wireless technologies.
